Professional Radio CPS R06.12.02

===============================================================
Professional Radio - Customer Programming Software R06.12.02
================================================================

Enhancements in this release:
---------------------
- Support ARTS(TM) feature.
ARTS(TM) is a registered trademark of Vertex Standard.



System Requirements:
--------------------
Operating Systems: Windows 95, Windows 98, Window NT 4.0,
Windows ME, Windows 2000 Professional,Windows XP (Home and Office),
Windows Vista(32 bits edition), Windows7 (32 bits edition)

Hardware Requirements:
Processor Pentium II 333 or higher
Memory 64 MB RAM recommended
Hard Disk Space 16 MB minimum Free Space
Peripherals Microsoft Windows supported Mouse or Trackball
Microsoft Windows supported Serial Port for radio communication
Microsoft Windows supported Printer Port for report printing
1.44 MB 3 1/2 inch Floppy Disk Drive
CD-ROM for software installation

Warning:
----------------

1) If your PC is running the first release of Microsoft Windows 95
and Internet Explorer has not been installed, you may experience
problems in installing and running the CPS due to certain
components of the operating system being out of date.

To eliminate this problem two Microsoft patches have been included
on the CPS CD. If you experience any problems under Windows 95,
please go to the CD and run:
/Win95Patches/40comupd.exe
/Win95Patches/dcom95.exe
and then re-install the CPS.

2) On some PCs, the CPS may abnormally terminate if Print Preview
is attempted on the Print Custom screen. This problem only occurs
when Print All is selected. This problem has been observed on
Compaq Windows 98 computers with the following programs running:
* Easy Access Internet Program (cpqEasyAcc.exe)
* Compaq Internet Watchdog Program (watchdog.exe)
If this CPS function is to be used, it is recommended that these
programs be removed from the PC startup.

3) On some printers, the columns in some printed tables might be
slightly wider than they should be, causing the table to spread
horizontally onto a second page.

4) On certain HP Laserjet printers the Print Summary option will only print
one page. If you experience this problem, it is recommended that you first
save the information to a file and then use any Editor (Word, Wordpad, etc..)
to open the file and print the summary information.

5) When in Windows ME and Windows XP, sometimes an extra set of scroll bars get
displayed when viewing certain screens.

Note: The most possible reasons (but not all) to see the secondary pop up warning message are:
(1) The target radio model number mismatch CPS archive file.
(2) The target radio region ID is not supported by the CPS.
(3) The target radio codeplug mismatch with the CPS.
(4) CPS password verification failed when write radio.
(5) CPS and radio communication error.









Programming Hints:
------------------

1) It should be noted that a new/added conventional personality
must be assigned to a zone/channel position. To add a zone to
a radio click the "+" in a Personality Assignment to Zone
Window. To add a conventional personality to the radio, click
the "+" on a Conventional Personality Window. To add an
additional conventional personality to a zone go to the
Personality Assignment to Zone:Channel window for the
desired zone. Click the right mouse key within the channel
table to add a conventional personality entry. Please read

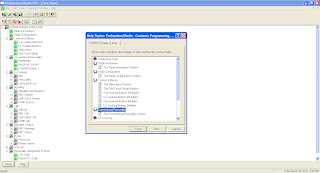

the CPS help for additional information.

2) Speed Dial buttons should not be programmed to the P1, P2, and
P3 buttons on radios, which overlay these buttons with the menu
navigation keys. The speed dial buttons will not operate
in this configuration because the buttons function as the menu
navigation keys when phone mode is entered.

3) When adding a new conventional personality, verify that the
bandwidth selected on the Conventional Personality Basic screen is
correct. Incorrect selections will lead to poor radio
performance.
