FIRMWARE/ CODEPLUG UPGRADE KIT RELEASE NOTE
=======================================================================================
Product : Professional Radios Firmware/ Codeplug Upgrade Kit
Release : R01.04.03
Date : 02-July-2009
Language : English
Supporting OS : Win95,Win98,Win2k,WinNT,WinXP
=======================================================================================
PURPOSE OF THIS RELEASE
=======================================================================================
Supported features:
- Update Tx high power with the Tx low power value
- Update PABias high with the PABias low value
- Up-version the Extended Waris/ Extended Lazarus EPP radios to software version R01.04.03
and codeplug is updated to the latest version as shown below.
- The tuning data and the CPS programming data will be preserved.
Supported Software versions:
- Only official radio software release version and bands.
In this version:
R01.00.00, R01.00.01, R01.01.00, R01.01.02, R01.02.07,
R01.03.08, R01.03.11, R01.03.20, R01.03.21, R01.03.22,
B01.03.25, R01.03.25, R01.03.26, R01.03.30, B01.03.54,
R01.03.54, R01.03.57, R01.03.58, B01.03.60, R01.03.60,
R01.03.62, B01.03.63, R01.03.64, B01.03.65, R01.03.66,
R01.03.68, R01.03.71, R01.03.73, B01.04.01, R01.04.01,
R01.04.03
- Supported EPP Models:
Model Number Super Tanapa Description Codeplug version
-------------------------------------------------------------------------------------------------
H25KDC9GB3 PMUD1649B MTX900 136-174 12.5/25K 5W 2.08
H25KDC9GC3 PMUD1649B ATS2500 136-174 12.5/25K 5W 2.08
H25KDC9GE3 PMUD1649B PPR 136-174 12.5/25K 5W 2.08
H25KDH9GB6 PMUD1650B MTX960 136-174 12.5/25K 5W DISPLAY 2.09
H25KDH9GC6 PMUD1650B ATS2500 136-174 12.5/25K 5W DISPLAY 2.09
H25KDH9GE6 PMUD1650B PPR 136-174 12.5/25K 5W DISPLAY 2.09
H25RCH4GC6 PMUE2215C GP580 UHF1 K/P S/Zone ATEX (12.5khz) 2.14
H25RCH4GC6 PMUE2215C ATS2500 UHF1 K/P S/Zone ATEX (12.5khz) 2.14
H25RCH4GC6 PMUE2215D GP580 UHF1 K/P S/Zone ATEX (12.5khz) 2.14
H25RCH4GC6 PMUE2215E GP580 UHF1 K/P S/Zone ATEX (12.5khz) 2.14
H25RCH6GC6 PMUE2255C GP580 UHF1 K/P S/Zone ATEX (25.0khz) 2.14
H25RCH6GC6 PMUE2255C ATS2500 UHF1 K/P S/Zone ATEX (25.0khz) 2.14
H25RCH6GC6 PMUE2255D GP580 UHF1 K/P S/Zone ATEX (25.0khz) 2.14
H25RCH6GC6 PMUE2255E GP580 UHF1 K/P S/Zone ATEX (25.0khz) 2.14
H25RDC9GB3 PMUE1678B MTX900 UhfB1 12.5/25K 4W 2.11
H25RDC9GC3 PMUE1678B ATS2500 UhfB1 12.5/25K 4W 2.11
H25RDC9GE3 PMUE1678B PPR UhfB1 12.5/25K 4W 2.11
H25RDH9GB6 PMUE1679B MTX960 UhfB1 12.5/25K 4W DISPLAY 2.12
H25RDH9GC6 PMUE1679B ATS2500 UhfB1 12.5/25K 4W DISPLAY 2.12
H25RDH9GE6 PMUE1679B PPR UhfB1 12.5/25K 4W DISPLAY 2.12
H25RDH9GB6 PMUE1679C MTX960 UhfB1 12.5/25K 4W DISPLAY 2.12
H25RDH9GC6 PMUE1679C ATS2500 UhfB1 12.5/25K 4W DISPLAY 2.12
H25RDH9GE6 PMUE1679C PPR UhfB1 12.5/25K 4W DISPLAY 2.12
H25RDC9GB3 PMUE1678C MTX900 UhfB1 12.5/25K 4W 2.11
H25RDC9GC3 PMUE1678C ATS2500 UhfB1 12.5/25K 4W 2.11
H25RDC9GE3 PMUE1678C PPR UhfB1 12.5/25K 4W 2.11
H25SDC9GB3 PMUE1680B MTX900 450-527 12.5/25K 4W 2.08
H25SDC9GC3 PMUE1680B ATS2500 450-527 12.5/25K 4W 2.08
H25SDC9GE3 PMUE1680B PPR 450-527 12.5/25K 4W 2.08
H25SDC9GB3 PMUE1680C MTX900 450-527 12.5/25K 4W 2.09
H25SDC9GC3 PMUE1680C ATS2500 450-527 12.5/25K 4W 2.09
H25SDC9GE3 PMUE1680C PPR 450-527 12.5/25K 4W 2.09
H25SDH9GB6 PMUE1681B MTX960 450-527 12.5/25K 4W DISPLAY 2.09
H25SDH9GC6 PMUE1681B ATS2500 450-527 12.5/25K 4W DISPLAY 2.09
H25SDH9GE6 PMUE1681B PPR 450-527 12.5/25K 4W DISPLAY 2.09
H25SDH9GB6 PMUE1681C MTX960 450-527 12.5/25K 4W DISPLAY 2.10
H25SDH9GC6 PMUE1681C ATS2500 450-527 12.5/25K 4W DISPLAY 2.10
H25SDH9GE6 PMUE1681C PPR 450-527 12.5/25K 4W DISPLAY 2.10
H25KCH4GC6 PMUD1971A (ATS2500) GP580 VHF K/P S/Zone ATEX (12.5khz) 2.12
H25KCH4GC6 PMUD1971B (ATS2500) GP580 VHF K/P S/Zone ATEX (12.5khz) 2.12
H25KCH6GC6 PMUD2047A (ATS2500) GP580 VHF K/P S/Zone ATEX (25.0khz) 2.12
H25KCH6GC6 PMUD2047B (ATS2500) GP580 VHF K/P S/Zone ATEX (25.0khz) 2.12
H25UCC6FB3 PMUF1063C MTX900 800 25K 2.5W (Public Safety) 2.12
H25UCC6FC3 PMUF1063C ATS2500 800 25K 2.5W (Public Safety) 2.12
H25UCC6FE3 PMUF1063C PPR 800 25K 2.5W (Public Safety) 2.12
H25UCC6GB3 PMUF1046C MTX900 800 25K 2.5W 2.12
H25UCC6GC3 PMUF1046C PPR 800 25K 2.5W 2.12
H25UCC6GE3 PMUF1046C ATS2500 800 25K 2.5W 2.12
H25UCH6FB6 PMUF1064C MTX900 800 25K 2.5W DISPLAY (Public Safety) 2.12
H25UCH6FC6 PMUF1064C ATS2500 800 25K 2.5W DISPLAY (Public Safety) 2.12
H25UCH6FE6 PMUF1064C PPR 800 25K 2.5W DISPLAY (Public Safety) 2.12
H25UCH6GB6 PMUF1047C MTX960 800 25K 2.5W DISPLAY 2.12
H25UCH6GC6 PMUF1047C ATS2500 800 25K 2.5W DISPLAY 2.12
H25UCH6GE6 PMUF1047C PPR 800 25K 2.5W DISPLAY 2.12
- Supported non-EPP Models:
Model Number Super Tanapa Description Codeplug version
-------------------------------------------------------------------------------------------------
H25KDC9GB3 PMUD1649A MTX900 136-174 12.5/25K 5W 2.07
H25KDC9GC3 PMUD1649A ATS2500 136-174 12.5/25K 5W 2.07
H25KDC9GE3 PMUD1649A PPR 136-174 12.5/25K 5W 2.07
H25KDH9GB6 PMUD1650A MTX960 136-174 12.5/25K 5W DISPLAY 2.07
H25KDH9GC6 PMUD1650A ATS2500 136-174 12.5/25K 5W DISPLAY 2.07
H25KDH9GE6 PMUD1650A PPR 136-174 12.5/25K 5W DISPLAY 2.07
H25PDC9GB3 PMUD1651A MTX900 330-400 12.5/25K 4W 2.10
H25PDC9GC3 PMUD1651A ATS2500 330-400 12.5/25K 4W 2.10
H25PDC9GE3 PMUD1651A PPR 330-400 12.5/25K 4W 2.10
H25PDH9GB6 PMUD1652A MTX960 330-400 12.5/25K 4W DISPLAY 2.10
H25PDH9GC6 PMUD1652A ATS2500 330-400 12.5/25K 4W DISPLAY 2.10
H25PDH9GE6 PMUD1652A PPR 330-400 12.5/25K 4W DISPLAY 2.10
H25RDC9GB3 PMUE1678A MTX900 UhfB1 12.5/25K 4W 2.10
H25RDC9GC3 PMUE1678A ATS2500 UhfB1 12.5/25K 4W 2.10
H25RDC9GE3 PMUE1678A PPR UhfB1 12.5/25K 4W 2.10
H25RDH9GB6 PMUE1679A MTX960 UhfB1 12.5/25K 4W DISPLAY 2.10
H25RDH9GC6 PMUE1679A ATS2500 UhfB1 12.5/25K 4W DISPLAY 2.10
H25RDH9GE6 PMUE1679A PPR UhfB1 12.5/25K 4W DISPLAY 2.10
H25SDC9GB3 PMUE1680A MTX900 450-527 12.5/25K 4W 2.07
H25SDC9GC3 PMUE1680A ATS2500 450-527 12.5/25K 4W 2.07
H25SDC9GE3 PMUE1680A PPR 450-527 12.5/25K 4W 2.07
H25SDH9GB6 PMUE1681A MTX960 450-527 12.5/25K 4W DISPLAY 2.07
H25SDH9GC6 PMUE1681A ATS2500 450-527 12.5/25K 4W DISPLAY 2.07
H25SDH9GE6 PMUE1681A PPR 450-527 12.5/25K 4W DISPLAY 2.07
H25UCC6FB3 PMUF1063A MTX900 800 25K 2.5W (Public Safety) 2.10
H25UCC6FC3 PMUF1063A ATS2500 800 25K 2.5W (Public Safety) 2.10
H25UCC6FE3 PMUF1063A PPR 800 25K 2.5W (Public Safety) 2.10
H25UCC6GB3 PMUF1046A MTX900 800 25K 2.5W 2.10
H25UCC6GC3 PMUF1046A ATS2500 800 25K 2.5W 2.10
H25UCC6GE3 PMUF1046A PPR 800 25K 2.5W 2.10
H25UCH6FB6 PMUF1064A MTX900 800 25K 2.5W DISPLAY (Public Safety) 2.10
H25UCH6FC6 PMUF1064A ATS2500 800 25K 2.5W DISPLAY (Public Safety) 2.10
H25UCH6FE6 PMUF1064A PPR 800 25K 2.5W DISPLAY (Public Safety) 2.10
H25UCH6GB6 PMUF1047A MTX960 800 25K 2.5W DISPLAY 2.10
H25UCH6GC6 PMUF1047A ATS2500 800 25K 2.5W DISPLAY 2.10
H25UCH6GE6 PMUF1047A PPR 800 25K 2.5W DISPLAY 2.10
H25WCC4GB3 PMUF1059A MTX900 900 12.5K 3W 2.08
H25WCC4GC3 PMUF1059A ATS2500 900 12.5K 3W 2.08
H25WCC4GE3 PMUF1059A PPR 900 12.5K 3W 2.08
H25WCC6GB3 PMUF1059A MTX900 900 12.5K 3W 2.08
H25WCC6GC3 PMUF1059A ATS2500 900 12.5K 3W 2.08
H25WCC6GE3 PMUF1059A PPR 900 12.5K 3W 2.08
H25WCC4GB3 PMUF1059B MTX900 900 12.5K 3W 2.09
H25WCC4GC3 PMUF1059B ATS2500 900 12.5K 3W 2.09
H25WCC4GE3 PMUF1059B PPR 900 12.5K 3W 2.09
H25WCH4GB6 PMUF1060A MTX960 900 12.5K 3W DISPLAY 2.08
H25WCH4GC6 PMUF1060A ATS2500 900 12.5K 3W DISPLAY 2.08
H25WCH4GE6 PMUF1060A PPR 900 12.5K 3W DISPLAY 2.08
H25WCH6GB6 PMUF1060A MTX960 900 12.5K 3W DISPLAY 2.08
H25WCH6GC6 PMUF1060A ATS2500 900 12.5K 3W DISPLAY 2.08
H25WCH6GE6 PMUF1060A PPR 900 12.5K 3W DISPLAY 2.08
H25WCH4GB6 PMUF1060B MTX960 900 12.5K 3W DISPLAY 2.09
H25WCH4GC6 PMUF1060B ATS2500 900 12.5K 3W DISPLAY 2.09
H25WCH4GE6 PMUF1060B PPR 900 12.5K 3W DISPLAY 2.09
=======================================================================================
WARNING
=======================================================================================
PLEASE READ: WARNING’S FOR ALL RADIO TYPES
PLEASE SAVE YOUR EXISTING CODEPLUG AS AN ARCHIVE FILE. The codeplug programming
information may be lost after the update process therefore, it is recommended to read the
radio using the CPS, and save an archive of the radio's codeplug before starting the update
process. After the update, this archive can now be used to recover the codeplug programming
information by programming the archive back into the radio.
Ensure the radio updating process is not interrupted. Interruption will cause the radio
not to operate anymore and attempting to update the radio again will NOT be successful.
Do NOT create a shortcut of the program (e.g. on your desktop), the program might not
be able to find the data files in that case!
Do not remove the programming cable or turn off the radio while the update is in progress.
In case of failure during the updating, a message box will appear to guide the user to
recover from the failure, if possible.
The flashing rate can be changed only by restarting the program.
You may not run more than one copy of the program at the same time.
Baud rate 115k can only be supported by certain Radio Interface Boxes (RIB).
Use 19k baud rate when using a RIB. RKN4075A RIBless cable supports 115k baud.
=======================================================================================
How to install and run this software
=======================================================================================
Installation of the software can be completed by double clicking
the setup file "Waris-X_Upgrade_Kit-R01.04.03.exe",and can be
started through:
Programs Menu-> All Programs-> Motorola-> Professional Radios Waris-X Upgrade Kit->
Waris-X Firmware(R01.04.03) and Codeplug Upgrade Kit.
Do NOT create a shortcut of the program e.g. on your desktop,the program
might not be able to find the data files in that case !
REQUIRED EQUIPMENT
For the usage of this software the following radio accessories
are required:
1) Conventional Radio
- Flash adapter, P/N HLN9742
and (i)
- Radio Interface Box, P/N RLN4008
with battery or power supply
- RIB to PC cable, P/N 3080369B72 (9pin) or 3080369B71 (25pin)
- Programming/test cable, P/N RKN4074A
or (ii)(Only for Conventional Radio)
- RIBless programming cable, P/N RKN4075A
By using equipment (i) the Flash adapter has to be connected
between the Radio Interface Box and the Programming/test cable.
Maximum baud rate for this equipment is 19,200 Bd.
By using equipment (ii) the Flash adapter has to be connected
between the PC and the RIBless programming cable.
For Flash Adapter HLN9742B, "Flash mode on" means switch
position "A", position "B" is NOT used for portable radios.
=======================================================================================
INSTRUCTIONS ABOUT UPGRADING PROCESS
=======================================================================================
The following instructions detail the operations of the Firmware Kit:
(Note: These instructions must be followed in the exact order to work properly):
1. Read through the README file and make sure your radio meets the updating
specifications. The README file can be found by going through Start Menu
>> Programs >> Motorola >> Professional Radios Waris-X Upgrade Kit >>
Waris-X Firmware(R01.04.03) and Codeplug Upgrade Kit >> README.
These instructions must be followed in the exact order for the radio
updating to work properly.
2. Start the Firmware Kit by going to Start menu >> Programs >> Motorola >>
Professional Radios Waris-X Upgrade Kit >> Waris-X Firmware(R01.04.03) and
Codeplug Upgrade Kit >> Waris-X Firmware(R01.04.03) and Codeplug Upgrade Kit>>
UpgradeKit.exe.
3. Connect a fully charged battery or a power supply to a radio and turn the
radio on. Ensure that the radio has powered up properly.
4. Attach the programming cable to the radio. Connect the other end of the
programming cable to the computer or Radio Interface Box (RIB) through
the flashing adapter (HLN9742B). Ensure that the flashing adapter is set
to "OFF" position.
5. After the Firmware Kit is launched and only on the first attempt of updating,
the flash Baud rate configuration dialog box will appear. The default baud
rate is 19,200. Select "OK" if you want to use the default value or you can
select a different baud rate and then click the "OK" button.
6. Once the update screen appears, select from the drop down menu "Radio Access >
Upgrade Radio > " or click the "Upgrade Radio" button. Read and follow the
instructions and click the 'Start Upgrade' button.
7. You will now see a status bar indicating the checking of radio data.
8. Set the flash adapter to 'ON' position.
9. Remove the power from the radio and then reconnect the power.
#Note:
THE RADIOS DISPLAY WILL BE BLANK AND THE RADIO WILL APPEAR TO BE NONFUNCTIONAL
EVEN THOUGH THE "on/off" KNOB IS IN THE "ON" POSITION. THIS IS CORRECT!!! THE
RADIO IS ACTUALLY IN BOOTSTRAP MODE WHICH IS REQUIRED FOR FLASHING!
10. Click the "OK" button to continue with the updating process.
11. You will now see a status bar indicating the percentage of completion.
12. Once flashing is completed, remove the programming cable and set the flash
adapter to "OFF" position.
(This is very important, even if you are going to update another radio).
13. To update another radio, attach the programming cable, and go to step #3.
============================================================================
TROUBLESHOOTING
============================================================================
If Firmware Kit will not start
1. Make sure this is an original version of the kit and not copied off another
computer.
2. Make sure another copy is not running on your computer.
If an error is returned when you select program, check the following:
1. On the Comm setting menu, make sure that the port selected is the one to
which the radio is connected.
2. Make sure the radio is on and properly connected to the computer.
3. Make sure the HLN9742B adapter is in the OFF position.
If an error is returned immediately after the radio is put in bootstrap and Ok
is clicked put the adapter in the OFF position, put the radio off, on and try
again.
Adjusting Transmit Buffer:
1. Press Start button.
2. Select Setting and click on Control Panel.
3. Double click on System.
4. Select the Device Manager tab and double click on the Communication Port (COM1).
5. Select the Port Settings tab and click on the Advanced button.
6. Adjust the Transmit Buffer to one step lower than the highest.
============================================================================
WARNING
============================================================================
Ensure radio flashing is not interrupted. Interruption will cause the radio
not to operate anymore. Trying to flash the radio again will not work.
The radio has to be returned to the depot for service.
============================================================================

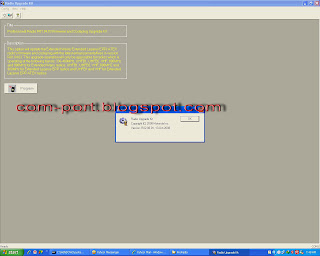

Current Release : Extended Waris Portable Firmware R01.04.03
Previous Release : Extended Waris Portable Firmware R01.04.01
