SOFTWARE RELEASE NOTE
====================================================================================
Product : Professional Radio Firmware Kit
Release : R05.08.05
Date : 22-May-2009
Language : English
Supporting OS : Win 95,Win98,Win2000,WinNT,WinXP
====================================================================================
Purpose of this release
====================================================================================
Supported features:
- Up-version a radio to software version R05.08.05 from previous released versions.
- For models PMUF1112A and PMUF1112B, due to the enhancement on 700M reband,
the whole codeplug will be overwritten with the new default codeplg file,
Note that none of the CPS programming data will be preserved during upgrade,
so user has to reconfigure all the CPS settings after upgrade.
- For models PMUD1766A and PMUD1766B, due to the codeplug tanapa change,
the whole codeplug will be overwritten with the new default codeplug file,
Users need to follow the instructions prompted to save the settings with CPS
before upgrade, and then restore back the settings after upgrade.
- The tuning data and the CPS programming data will be preserved excluded for 4 models mention above.
Supported Software versions:
- Only official radio software release version and bands.
In this version:
R02.00.00, R02.00.01, R02.00.02, R03.00.00, R03.00.01
R04.00.00, R04.01.00, R04.01.14, R04.01.15, R04.01.18
R04.02.01, R04.02.08, R05.00.00, R05.01.00, R05.02.00
R05.02.03, R05.03.00, R05.04.00, R05.04.01, R05.05.02
R05.05.03, R05.05.04, R05.05.05, R05.05.10, R05.05.12
R05.05.15, R05.05.17, R05.05.19, B05.05.20, R05.05.22
R05.06.04, R05.07.02, R05.08.01, R05.08.02, R05.08.05
- Supported model number:
New models supported
--------------------
Model Number Tanapa Number Latest Version Description
--------------------------------------------------------------------------------
M25KHF9DP5AN PMUD2063C 2.00 ST CDM1550LS+ 136-174M 25W 16CH
M25KHF9DP6AN PMUD2064C 2.00 ST CDM1550LS+ 136-174 25W 160CH
M25KKF9DP5AN PMUD2065C 2.00 ST CDM1550LS+136-174 45W 16C
M25KKF9DP6AN PMUD2066C 2.00 ST CDM1550LS+ 137-174M 45W 160CH
M25RHF9DP5A PMUE1754D 2.00 WM PASSPORT UHF R1 LP
M25RKF9DP5A PMUE1756E 2.00 WM PASSPORT UHF R1 HP
M25RHF9DP6AN PMUE1939D 2.00 WM S/T LS+ UHF R1 LP MDC/CONV
M25RKF9DP6AN PMUE1940E 2.00 WM S/T LS+ UHF R1 HP MDC/CONV
Model Number Tanapa Number Latest Version Description
--------------------------------------------------------------------------------
M25KHF9DP5AN PMUD2063C 2.00 ST CDM1550LS+ 136-174M 25W 16CH
M25KHF9DP6AN PMUD2064C 2.00 ST CDM1550LS+ 136-174 25W 160CH
M25KKF9DP5AN PMUD2065C 2.00 ST CDM1550LS+136-174 45W 16C
M25KKF9DP6AN PMUD2066C 2.00 ST CDM1550LS+ 137-174M 45W 160CH
M25RHF9DP5A PMUE1754D 2.00 WM PASSPORT UHF R1 LP
M25RKF9DP5A PMUE1756E 2.00 WM PASSPORT UHF R1 HP
M25RHF9DP6AN PMUE1939D 2.00 WM S/T LS+ UHF R1 LP MDC/CONV
M25RKF9DP6AN PMUE1940E 2.00 WM S/T LS+ UHF R1 HP MDC/CONV
M25SKN9AA8A IMUE6041B 3.00 Conv Prime UB2 hi ldmos com
M25MHF4DP5A PMUD1765A 2.28 PPT Conv MDC LS Trunking Pref 220 lo ldmos com
M25MHF4DP5A PMUD1765B 2.05 PPT Conv MDC LS Trunking Pref 220 lo b ldmos com
M255HF4DP5A PMUF1111A 5.02 PPT Conv MDC LS Trunking Pref 700 lo ldmos com
M255HF4DP5A PMUF1111B 5.02 PPT Conv MDC LS Trunking Pref 700 lo b ldmos com
M25SKC9AA1A IMUE6025A 2.23 Conv Plain UB2 hi com
M25SKD9AA2A IMUE6025A 2.23 Conv Pop UB2 hi com
M25SKF9AA5A IMUE6025A 2.23 Conv Pref UB2 hi com
M25SKF9DU5A IMUE6025A 2.26 LS Trunking Pref UB2 hi com
M25SKA9AA0A IMUE6025A 2.21 Conv Data UB2 hi com
M25SKF9AA5A IMUE6025B 2.23 Conv Pref UB2 hi com
M25SKD9AA2A IMUE6025B 2.23 Conv Pop UB2 hi com
M25SKC9AA1A IMUE6025B 2.23 Conv Plain UB2 hi com
M25SKF9DU5A IMUE6025B 2.26 LS Trunking Pref UB2 hi com
M25SKA9AA0A IMUE6025B 2.21 Conv Data UB2 hi com
M25SKD9AA2A IMUE6025C 2.23 Conv Pop UB2 hi com
M25SKF9AA5A IMUE6025C 2.23 Conv Pref UB2 hi com
M25SKC9AA1A IMUE6025C 2.23 Conv Plain UB2 hi com
M25SKF9DU5A IMUE6025C 2.26 LS Trunking Pref UB2 hi com
M25SKA9AA0A IMUE6025C 2.21 Conv Data UB2 hi com
M25SKC9AA1A IMUE6025D 2.03 Conv Plain UB2 hi ldmos com
M25SKD9AA2A IMUE6025D 2.03 Conv Pop UB2 hi ldmos com
M25SKF4AA5A IMUE6025D 2.01 Conv Pref UB2 hi bnc 12.5K com
M25SKF9AA5A IMUE6025D 2.03 Conv Pref UB2 hi ldmos com
M25SKF9DU5A IMUE6025D 2.06 LS Trunking Pref UB2 hi ldmos com
M25SHC9AA1A IMUE6028A 2.22 Conv Plain UB2 lo com
M25SHD9AA2A IMUE6028A 2.22 Conv Pop UB2 lo com
M25SHF9AA5A IMUE6028A 2.22 Conv Pref UB2 lo com
M25SHF9DU5A IMUE6028A 2.26 LS Trunking Pref UB2 lo com
M25SHA9AA0A IMUE6028A 2.20 Conv Data UB2 lo com
M25SHA9AA0A IMUE6028B 2.26 Conv Data UB2 lo ldmos com
M25SHC9AA1A IMUE6028B 2.28 Conv Plain UB2 lo ldmos com
M25SHD9AA2A IMUE6028B 2.28 Conv Pop UB2 lo ldmos com
M25SHF9AA5A IMUE6028B 2.28 Conv Pref UB2 lo ldmos com
M25SHF9DU5A IMUE6028B 2.31 LS Trunking Pref UB2 lo ldmos com
M25SHF4AA5 IMUE6028B 2.01 LS Trunking Pref UB2 lo ldmos 12.5k com
M25SKF9DU5A IMUE6031A 2.26 LS Trunking Pref UB2 hi com
M25SHN9AA8A IMUE6043A 3.18 Conv Prime UB2 lo ldmos com
M25SKN9AA8A IMUE6045A 3.10 Conv Prime UB2 hi a com
M25SKN9AA8A IMUE6045B 3.10 Conv Prime UB2 hi b com
M25SKN9AA8A IMUE6045C 3.03 Conv Prime UB2 hi ldmos com
M25SHF9DP5A PMUE1755A 2.07 PPT LS Trunking Pref UB2 lo ldmos com
M25SHF9DP5A PMUE1755B 2.04 PPT LS Trunking Pref UB2 lo ldmos com
M25SKF9DP5A PMUE1757A 2.06 PPT LS Trunking Pref UB2 hi com
M25SKF9DP5A PMUE1757B 2.05 PPT LS Trunking Pref UB2 hi ldmos com
M25SKF9DP5A PMUE1757C 2.04 PPT LS Trunking Pref UB2 hi ldmos com
M25SKC9PW1A PMUE1874A 2.03 Conv Plain UB2 1 5ppm hi ldmos com
M25SKD9PW2A PMUE1874A 2.03 Conv Pop UB2 1 5ppm hi ldmos com
M25SKF9PW5A PMUE1874A 2.03 Conv Pref UB2 1 5ppm hi ldmos com
M25SHF9DP6AN PMUE1941A 2.09 PPT Conv MDC LS Trunking Pref UB2 lo ldmos com
M25SHF9DP6AN PMUE1941B 2.04 PPT Conv MDC LS Trunking Pref UB2 lo ldmos com
M25SKF9DP6AN PMUE1942A 2.08 PPT Conv MDC LS Trunking Pref UB2 hi com
M25SKF9DP6AN PMUE1942B 2.05 PPT Conv MDC LS Trunking Pref UB2 hi ldmos com
M25SKF9DP6AN PMUE1942C 2.04 PPT Conv MDC LS Trunking Pref UB2 hi ldmos com
M25SHD6AA2A PMUE2305A 2.05 Conv Pop UB2 lo fixed2 ldmos com
M25SHD6AA2A PMUE2306A 2.05 Conv Pop UB2 lo fixed1 ldmos com
M25SHD9AA2A PMUE2726A 2.02 Conv LS Trunking Pop UB2 lo
M25SHF9AA5A PMUE2726A 2.02 Conv LS Trunking Pref UB2 lo
M25SHD9AA2A PMUE2726B 2.02 Conv LS Trunking Pop UB2 lo ldmos
M25SHF9AA5A PMUE2726B 2.02 Conv LS Trunking Pref UB2 lo ldmos
M25SKD9AA2A PMUE2727A 2.02 Conv LS Trunking Pop UB2 hi
M25SKF9AA5A PMUE2727A 2.02 Conv LS Trunking Pref UB2 hi
M25SKD9AA2A PMUE2727B 2.02 Conv LS Trunking Pop UB2 hi b
M25SKF9AA5A PMUE2727B 2.02 Conv LS Trunking Pref UB2 hi b
M25SKD9AA2A PMUE2727C 2.02 Conv LS Trunking Pop UB2 hi c
M25SKF9AA5A PMUE2727C 2.02 Conv LS Trunking Pref UB2 hi c
M25SKD9AA2A PMUE2727D 2.02 Conv LS Trunking Pop UB2 hi ldmos
M25SKF9AA5A PMUE2727D 2.02 Conv LS Trunking Pref UB2 hi ldmos
M25DKA9AA0A IMUB6002A 2.19 Conv Data lb3 sd com
M25DKC9AA1A IMUB6002A 2.21 Conv Plain lb3 sd com
M25DKD9AA2A IMUB6002A 2.21 Conv Pop lb3 sd com
M25DKF9AA5A IMUB6002A 2.21 Conv Pref lb3 sd com
M25RKF9AA5A IMUE6012C 2.02 Conv Pref UB1 hi bnc EPP com
M25RKC9AA1A IMUE6012C 2.02 Conv Plain UB1 hi bnc EPP com
M25RKD9AA2A IMUE6012C 2.02 Conv Pop UB1 hi bnc EPP com
M25RKF4AA5A IMUE6012C 2.01 Conv Pref UB1 hi bnc EPP com 12.5K
M25RHF9AA5A IMUE6021B 2.02 Conv Pref UB1 lo bnc EPP com
M25RHA9AA0A IMUE6021B 2.01 Conv Data UB1 lo bnc EPP com
M25RHC9AA1A IMUE6021B 2.02 Conv Plain UB1 lo bnc EPP com
M25RHD9AA2A IMUE6021B 2.02 Conv Pop UB1 lo bnc EPP com
M25RHF4AA5 IMUE6021B 2.01 Conv Pref UB1 lo bnc 12.5k EPP com
M25SHA9AA0A IMUE6022A 2.00 Conv Data UB2 lo b ldmos com
M25SHC9AA1A IMUE6022A 2.01 Conv Plain UB2 lo b ldmos com
M25SHD9AA2A IMUE6022A 2.01 Conv Pop UB2 lo b ldmos com
M25SHF9AA5A IMUE6022A 2.01 Conv Pref UB2 lo b ldmos com
M25RKC9AA1A IMUE6024A 2.24 Conv Plain UB1 hi a com
M25RKD9AA2A IMUE6024A 2.24 Conv Pop UB1 hi a com
M25RKF9AA5A IMUE6024A 2.24 Conv Pref UB1 hi a com
M25RKF9DU5A IMUE6024A 2.27 LS Trunking Pref UB1 hi a com
M25RKA9AA0A IMUE6024A 2.22 Conv Data UB1 hi a com
M25RKF9AA5A IMUE6024B 2.24 Conv Pref UB1 hi b com
M25RKD9AA2A IMUE6024B 2.24 Conv Pop UB1 hi b com
M25RKC9AA1A IMUE6024B 2.24 Conv Plain UB1 hi b com
M25RKF9DU5A IMUE6024B 2.27 LS Trunking Pref UB1 hi b com
M25RKA9AA0A IMUE6024B 2.22 Conv Data UB1 hi b com
M25RKC9AA1A IMUE6024C 2.05 Conv Plain UB1 hi ldmos com
M25RKD9AA2A IMUE6024C 2.05 Conv Pop UB1 hi ldmos com
M25RKF9AA5A IMUE6024C 2.05 Conv Pref UB1 hi ldmos com
M25RKF9DU5A IMUE6024C 2.09 LS Trunking Pref UB1 hi ldmos com
M25RKA9AA0A IMUE6024C 2.00 Conv Data UB1 hi ldmos com
M25RKD9AA2A IMUE6024D 2.02 Conv Pop UB1 hi ldmos EPP com
M25RKC9AA1A IMUE6024D 2.02 Conv Plain UB1 hi ldmos EPP com
M25RKA9AA0A IMUE6024D 2.01 Conv Data UB1 hi ldmos EPP com
M25RKF9AA5A IMUE6024D 2.02 Conv Pref UB1 hi ldmos EPP com
M25RHC9AA1A IMUE6027A 2.23 Conv Plain UB1 lo ldmos com
M25RHD9AA2A IMUE6027A 2.23 Conv Pop UB1 lo ldmos com
M25RHF9AA5A IMUE6027A 2.23 Conv Pref UB1 lo ldmos com
M25RHF9DU5A IMUE6027A 2.27 LS Trunking Pref UB1 lo ldmos com
M25RHA9AA0A IMUE6027A 2.20 Conv Data UB1 lo ldmos com
M25RHD9AA2A IMUE6027B 2.02 Conv Pop UB1 lo ldmos EPP com
M25RHC9AA1A IMUE6027B 2.02 Conv Plain UB1 lo ldmos EPP com
M25RHA9AA0A IMUE6027B 2.01 Conv Data UB1 lo ldmos EPP com
M25RHF9AA5A IMUE6027B 2.02 Conv Pref UB1 lo ldmos EPP com
M25RKF9DU5A IMUE6029A 2.27 LS Trunking Pref UB1 hi com
M25RHN9AA8A IMUE6039A 3.14 Conv Prime UB1 lo ldmos com
M25RHN9AA8A IMUE6039B 3.02 Conv Prime UB1 lo ldmos EPP com
M25RKN9AA8A IMUE6040C 3.02 Conv Prime UB1 hi ldmos EPP com
M25RKN9AA8A IMUE6044A 3.10 Conv Prime UB1 hi a com
M25RKN9AA8A IMUE6044B 3.10 Conv Prime UB1 hi b com
M25RKN9AA8A IMUE6044C 3.05 Conv Prime UB1 hi ldmos com
M25RKN9AA8A IMUE6044D 3.02 Conv Prime UB1 hi ldmos EPP com
M25RHF9DP5A PMUE1754A 2.07 PPT LS Trunking Pref UB1 lo ldmos com
M25RHF9DP5A PMUE1754B 2.04 PPT LS Trunking Pref UB1 lo ldmos com
M25RHF9DP5A PMUE1754C 2.01 PPT LS Trunking Pref UB1 lo ldmos com
M25RKF9DP5A PMUE1756A 2.06 PPT LS Trunking Pref UB1 hi com
M25RKF9DP5A PMUE1756B 2.05 PPT LS Trunking Pref UB1 hi ldmos com
M25RKF9DP5A PMUE1756C 2.04 PPT LS Trunking Pref UB1 hi ldmos com
M25RKF9DP5A PMUE1756D 2.01 PPT LS Trunking Pref UB1 hi ldmos com
M25RHF9DP6AN PMUE1939A 2.09 PPT Conv MDC LS Trunking Pref UB1 lo ldmos com
M25RHF9DP6AN PMUE1939B 2.04 PPT Conv MDC LS Trunking Pref UB1 lo ldmos com
M25RHF9DP6AN PMUE1939C 2.01 PPT Conv MDC LS Trunking Pref UB1 lo ldmos com
M25RKF9DP6AN PMUE1940A 2.08 PPT Conv MDC LS Trunking Pref UB1 hi com
M25RKF9DP6AN PMUE1940B 2.05 PPT Conv MDC LS Trunking Pref UB1 hi ldmos com
M25RKF9DP6AN PMUE1940C 2.04 PPT Conv MDC LS Trunking Pref UB1 hi ldmos com
M25RKF9DP6AN PMUE1940D 2.01 PPT Conv MDC LS Trunking Pref UB1 hi ldmos com
M25RHD9AA2A PMUE2724A 2.02 Conv LS Trunking Pop UB1 lo ldmos
M25RHF9AA5A PMUE2724A 2.02 Conv LS Trunking Pref UB1 lo ldmos
M25RHD9AA2A PMUE2724B 2.02 Conv LS Trunking Pop UB1 lo EPP
M25RHF9AA5A PMUE2724B 2.02 Conv LS Trunking Pref UB1 lo EPP
M25RKD9AA2A PMUE2725A 2.02 Conv LS Trunking Pop UB1 hi
M25RKF9AA5A PMUE2725A 2.02 Conv LS Trunking Pref UB1 hi
M25RKD9AA2A PMUE2725B 2.02 Conv LS Trunking Pop UB1 hi b
M25RKF9AA5A PMUE2725B 2.02 Conv LS Trunking Pref UB1 hi b
M25RKD9AA2A PMUE2725C 2.02 Conv LS Trunking Pop UB1 hi ldmos
M25RKF9AA5A PMUE2725C 2.02 Conv LS Trunking Pref UB1 hi ldmos
M25RKD9AA2A PMUE2725D 2.02 Conv LS Trunking Pop UB1 hi EPP
M25RKF9AA5A PMUE2725D 2.02 Conv LS Trunking Pref UB1 hi EPP
M25CKC9AA1A IMUB6001A 2.19 Conv Plain lb2 sd com
M25CKD9AA2A IMUB6001A 2.19 Conv Pop lb2 sd com
M25CKF9AA5A IMUB6001A 2.19 Conv Pref lb2 sd com
M25CKA9AA0A IMUB6001A 2.17 Conv Data lb2 sd com
M25BKC9AA1A IMUB6000A 2.19 Conv Plain lb1 sd com
M25BKD9AA2A IMUB6000A 2.19 Conv Pop lb1 sd com
M25BKF9AA5A IMUB6000A 2.19 Conv Pref lb1 sd com
M25BKA9AA0A IMUB6000A 2.17 Conv Data lb1 sd com
M25KHF9DP5AN PMUD2063A 2.02 PPT Pref LS Trunking VHF B1 (25W 16CH)
M25KHF9DP5AN PMUD2063B 2.01 PPT Pref LS Trunking VHF B1 (25W 16CH)
M25KHF9DP6AN PMUD2064A 2.02 PPT Conv MDC Pref LS Trunking VHF B1 (45W 16CH)
M25KHF9DP6AN PMUD2064B 2.01 PPT Conv MDC Pref LS Trunking VHF B1 (45W 16CH)
M25KKF9DP5AN PMUD2065A 2.02 PPT Pref LS Trunking VHF B1(45W 16CH)
M25KKF9DP5AN PMUD2065B 2.01 PPT Pref LS Trunking VHF B1(45W 16CH)
M25KKF9DP6AN PMUD2066A 2.02 PPT Conv MDC Pref LS Trunking VHF B1 (45W 16CH)
M25KKF9DP6AN PMUD2066B 2.01 PPT Conv MDC Pref LS Trunking VHF B1 (45W 16CH)
M25KHD9AA2A PMUD2217A 2.02 Conv LS Trunking Pop VB1 lo
M25KHF9AA5A PMUD2217A 2.02 Conv LS Trunking Pref VB1 lo
M25KHD9AA2A PMUD2217B 2.02 Conv LS Trunking Pop VB1 lo EPP
M25KHF9AA5A PMUD2217B 2.02 Conv LS Trunking Pref VB1 lo EPP
M25KKD9AA2A PMUD2218A 2.02 Conv LS Trunking Pop VB1 hi
M25KKF9AA5A PMUD2218A 2.02 Conv LS Trunking Pref VB1 hi
M25KKD9AA2A PMUD2218B 2.02 Conv LS Trunking Pop VB1 hi ldmos
M25KKF9AA5A PMUD2218B 2.02 Conv LS Trunking Pref VB1 hi ldmos
M25KKD9AA2A PMUD2218C 2.02 Conv LS Trunking Pop VB1 hi EPP
M25KKF9AA5A PMUD2218C 2.02 Conv LS Trunking Pref VB1 hi EPP
M25KHA9AA0A IMUD6010B 2.01 Conv Data VB1 lo bnc EPP com
M25KHC9AA1A IMUD6010B 2.02 Conv Plain VB1 lo bnc EPP com
M25KHD9AA2A IMUD6010B 2.02 Conv Pop VB1 lo bnc EPP com
M25KHF9AA5A IMUD6010B 2.02 Conv Pref VB1 lo bnc EPP com
M25KHF4AA5 IMUD6010B 2.01 Conv Pref VB1 lo bnc 12.5k EPP com
M25KKC9AA1A IMUD6011C 2.02 Conv Plain VB1 hi bnc EPP com
M25KKF9AA5A IMUD6011C 2.02 Conv Pref VB1 hi bnc EPP com
M25KKF4AA5A IMUD6011C 2.01 Conv Pref VB1 hi bnc EPP com 12.5K
M25KHC9AA1A IMUD6014A 2.20 Conv Plain VB1 lo com
M25KHD9AA2A IMUD6014A 2.20 Conv Pop VB1 lo com
M25KHF9AA5A IMUD6014A 2.20 Conv Pref VB1 lo com
M25KHA9AA0A IMUD6014A 2.18 Conv Data VB1 lo com
M25KHC9AA1A IMUD6014B 2.02 Conv Plain VB1 lo EPP com
M25KHA9AA0A IMUD6014B 2.01 Conv Data VB1 lo EPP com
M25KHF9AA5A IMUD6014B 2.02 Conv Pref VB1 lo EPP com
M25KHD9AA2A IMUD6014B 2.02 Conv Pop VB1 lo EPP com
M25KKC9AA1A IMUD6015A 2.19 Conv Plain VB1 hi com
M25KKD9AA2A IMUD6015A 2.19 Conv Pop VB1 hi com
M25KKF9AA5A IMUD6015A 2.19 Conv Pref VB1 hi com
M25KKA9AA0A IMUD6015A 2.17 Conv Data VB1 hi com
M25KKF9AA5A IMUD6015B 2.02 Conv Pref VB1 hi ldmos com
M25KKC9AA1A IMUD6015B 2.02 Conv Plain VB1 hi ldmos com
M25KKD9AA2A IMUD6015B 2.02 Conv Pop VB1 hi ldmos com
M25KKD9AA2A IMUD6015C 2.02 Conv Pop VB1 hi ldmos EPP com
M25KKC9AA1A IMUD6015C 2.02 Conv Plain VB1 hi ldmos EPP com
M25KKF9AA5A IMUD6015C 2.02 Conv Pref VB1 hi ldmos EPP
M25SKD9AA2A IMUE6019B 2.01 Conv Pop UB2 hi b ldmos com
M25SKF9AA5A IMUE6019B 2.01 Conv Pref UB2 hi b ldmos com
M25KHN9AA8A IMUD6023A 3.08 Conv Prime VB1 lo com
M25KHN9AA8A IMUD6023B 3.02 Conv Prime VB1 lo EPP com
M25KKN9AA8A IMUD6025C 3.02 Conv Prime VB1 hi ldmos EPP com
M25KKN9AA8A IMUD6026A 3.08 Conv Prime VB1 hi com
M25KKN9AA8A IMUD6026B 3.02 Conv Prime VB1 hi ldmos com
M25KKN9AA8A IMUD6026C 3.02 Conv Prime VB1 hi ldmos EPP com
M25KHF9DU6A PMUD1810A 2.05 Conv MDC LS Trunking Pref VB1 lo com
M25KKF9DU6A PMUD1811A 2.05 Conv MDC LS Trunking Pref VB1 hi ldmos com
M25KHF9DU5A PMUD1850A 2.05 LS Trunking Pref VB1 lo com
M25KKF9DU5A PMUD1851A 2.05 LS Trunking Pref VB1 hi ldmos com
M25KKF9DU6A PMUD1811B 2.01 Conv MDC LS Trunking Pref VB1 hi ldmos com
M255HF4DP5A PMUF1112A 5.02 PPT Conv MDC LS Trunking Pref 700 lo ldmos com
M255HF4DP5A PMUF1112B 5.02 PPT Conv MDC LS Trunking Pref 700 lo b ldmos com
M25MHF4DP5A PMUD1766A 2.28 PPT Conv MDC LS Trunking Pref 220 lo ldmos com
M25MHF4DP5A PMUD1766B 2.05 PPT Conv MDC LS Trunking Pref 220 lo b ldmos com
====================================================================================
WARNING
====================================================================================
PLEASE READ: WARNING'S FOR ALL RADIO TYPES
PLEASE SAVE YOUR EXISTING CODEPLUG AS AN ARCHIVE FILE. The codeplug programming
information may be lost after the update process therefore, it is recommended to
read the radio using the CPS, and save an archive of the radio's codeplug before
starting the update process. After the update, this archive can now be used to
recover the codeplug programming information by programming the archive back into
the radio.
Ensure the radio updating process is not interrupted. Interruption will cause the
radio not to operate anymore and attempting to update the radio again will NOT be
successful.
Do NOT create a shortcut of the program (e.g. on your desktop), the program might
not be able to find the data files in that case!
Do not remove the programming cable or turn off the radio while the update is in progress.
In case of failure during the updating, a message box will appear to guide the user
to recover from the failure, if possible.
The flashing rate can be changed only by restarting the program.
You may not run more than one copy of the program at the same time.
Baud rate 115k can only be supported by certain Radio Interface Boxes (RIB).
Use 19k baud rate when using a RIB. RKN4075A RIBless cable supports 115k baud.
===========================================================
How to install and run this software
===========================================================
Installation of the software can be completed by double clicking
the setup file "FirmwareKit_Conv_Mobile_R050805.exe",and can be
started through Programs Menu.
REQUIRED EQUIPMENT
For the usage of this software the following radio accessories
are required:
- Flash adapter, P/N HLN9742, RIB programming cable, P/N AARKN4083A
and RIBless programming cable, P/N AARKN4081B the Flash adapter has to be connected between the PC and the RIBless programming cable.
For Flash Adapter HLN9742B, "Flash mode on" means switch to
i) Position "B", For RIBless programming cable, P/N AARKN4081B
ii) Position "A", For RIB programming cable, P/N AARKN4083A
==================================================================================
The following instructions detail the operations of the Firmware Kit:
(Note: These instructions must be followed in the exact order to work properly):
1. Power on the radio. If the ignition is on, turn off all other accessories to
ensure the quietest possible environment. Do not run the engine during this
procedure.
2. (i) For Ribless cable
--------------------
Connect the AARKN4081B programming cable to the microphone jack of the radio.
The Programming cable is connected to the adapter, and the adapter is
connected to the computer serial port (9 pin) through the 25 to 9 pin Converter.
Note: the Converter is not requiring if serial port is 25 pin.
(ii) For Rib Cable
----------------
Connect the AARKN4083A programming cable to the rear connector of the radio.
The Programming cable is connected to RLN4008E Radio Interface Box and it connected
to the computer serial port by RIB to PC cable, P/N 3080369B72 (9pin) or 3080369B71 (25pin)
Note: The Converter is not requiring if serial port is 25 pin.
: Maximum baud rate for this equipment is 19,200 Bd.
3. If you using a laptop ensure that "Transmit Buffer" in the Advanced Port Settings
window is not positioned at the highest setting. See troubleshooting section
"Adjusting Transmit Buffer" below for details.
4. Make sure that the switch in the HLN9742B adapter is in the OFF position.
5. Start the Firmware Kit by going to Programs-> Motorola-> Professional Series Radio Firmware Kit
-> Mobile Firmware Kit R05.08.05-> Firmware Kit R05.08.05 for Mobile Radios.

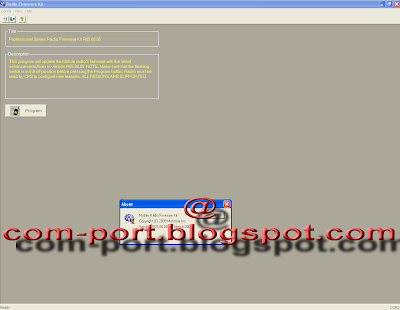

6. Once the upgrade screen appears, press the PROGRAM button.
7. For the first attempt of upgrade after the tool is launched, the flash baud
rate selection dialog will appear. Select a baud rate and press OK button.
8. A message box will appear with instructions to put the radio in bootstrap
mode.
Turn the radio to bootstrap mode by follow the following steps.
- Move the flash adapter switch (HLN9742B) to the "B" position for RIBless cable or "A" position for RIB cable.
- Press the ON/OFF button on the radio 2 times, waiting a minimum of 1 second between presses.
This process puts the radio into bootstrap mode.
NOTE: Please be aware, when pressing the ON/OFF button,you will not recieve any response from the radio.
This is normal operation for putting the radio into a mode for flasing.
Without the 1 second wait time, the radio will not properly go into bootstrap mode.
9. After clicking Ok, upgrading should begin if properly put in bootstrap mode.
10. If the radio is not properly put in bootstrap mode, a message box will appear with instructions to set the
radio in bootstrap mode again.
- Flashing operation could not be started.
- The radio may not be in bootstrap mode.
- Caution: Carefully follow these instructions to restore the radio.
Do not press "OK" until after steps 1 thru 3 have been performed.
1. Switch the flash adapter back to OFF position.
2. Disconnect and reconnect the radio's power supply.
3. If the radio is off, turn it back on by pressing the ON/OFF button.
4. Press "OK" and try to "Program" again.
11. When the process is complete, return the flashing switch to the OFF position
before disconnecting the cable from the radio or powering it up. The radio
will power off when the cable is removed.
12. Connect another radio and repeat from step 5. Remember, the baud rate
selection is done only the first time after starting up the program.
13. After upgrading all radios, remove the flashing adapter.
============================================================================
TROUBLESHOOTING
============================================================================
If Firmware Kit will not start
1. Make sure this is an original version of the kit and not copied off another computer
2. Make sure another copy is not running on your computer.
If an error is returned when you select program, check the following:
1. On the Comm setting menu, make sure that the port selected is the one to which the radio is connected.
2. Make sure the radio is on and properly connected to the computer.
3. Make sure the HLN9742B adapter is in the OFF position.
If an error is returned immediately after the radio is put in bootstrap and Ok is clicked put the adapter in the OFF position, put the radio off, on and try again.
Adjusting Transmit Buffer:
1. Press Start button.
2. Select Setting and click on Control Panel.
3. Double click on System.
4. Select the Device Manager tab and double click on the Communication Port (COM1).
5. Select the Port Settings tab and click on the Advanced button.
6. Adjust the Transmit Buffer to one step lower than the highest.
============================================================================
WARNING
============================================================================
Ensure radio flashing is not interrupted. Interruption will cause the radio
not to operate anymore. Trying to flash the radio again will not work.
The radio has to be returned to the depot for service.
==============================================================
RADIO SOFTWARE RELEASE NOTE
==============================================================
Release CONV_MOBILE_R05.08.05
Previous Release CONV_MOBILE_R05.08.02
