ENGLISH
This file contains important information about the installation of this
Customer Programming Software (CPS) on the Windows Operating Systems. To
see this information in English, please scroll down.
----------------------------------------
ESPAÑOL
Este archivo contiene información importante sobre la instalación de este
Software de Programación (CPS) en el sistema operativo Windows.
Para observar esta información en español, desplace la pantalla hacia abajo.
----------------------------------------
PORTUGUÊS
Este arquivo contém informação importante sobre a instalação do Software de
Programação (CPS) no sistema operativo Windows. Para observar esta
informação em português, role a tela para baixo.
===============================================================

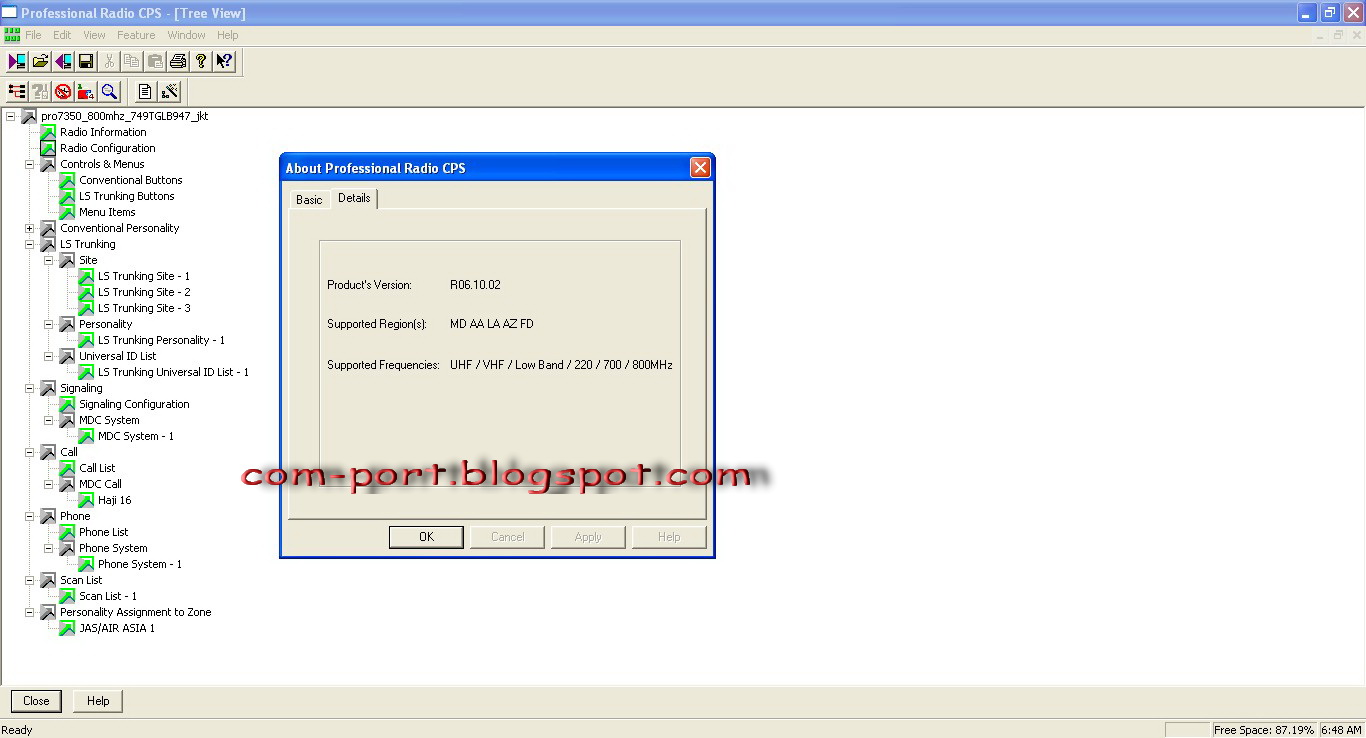

Professional Radio - Customer Programming Software R06.10.02
================================================================
Enhancements in this release:
---------------------
- Added the ability to active the feature that prevent priority channel 1 from being edit via radio menu.
- Added support for rebanding 700 MHz Waris HT1250LS+ Portable and CDM1550LS+ Mobile to new 700 MHz A BLOCK Guard Band: 757-758 / 787-788 MHz.
Fixed Reported Issues:
----------------------
N/A
System Requirements:
--------------------
Operating Systems: Windows 95, Windows 98, Window NT 4.0,
Windows ME, Windows 2000 Professional,
Windows XP (Home and Office)
Hardware Requirements:
Processor Pentium II 333 or higher
Memory 64 MB RAM recommended
Hard Disk Space 16 MB minimum Free Space
Peripherals Microsoft Windows supported Mouse or Trackball
Microsoft Windows supported Serial Port for radio communication
Microsoft Windows supported Printer Port for report printing
1.44 MB 3 1/2 inch Floppy Disk Drive
CD-ROM for software installation
Known CPS Issues:
----------------
1) If your PC is running the first release of Microsoft Windows 95
and Internet Explorer has not been installed, you may experience
problems in installing and running the CPS due to certain
components of the operating system being out of date.
To eliminate this problem two Microsoft patches have been included
on the CPS CD. If you experience any problems under Windows 95,
please go to the CD and run:
/Win95Patches/40comupd.exe
/Win95Patches/dcom95.exe
and then re-install the CPS.
2) On some PCs, the CPS may abnormally terminate if Print Preview
is attempted on the Print Custom screen. This problem only occurs
when Print All is selected. This problem has been observed on
Compaq Windows 98 computers with the following programs running:
* Easy Access Internet Program (cpqEasyAcc.exe)
* Compaq Internet Watchdog Program (watchdog.exe)
If this CPS function is to be used, it is recommended that these
programs be removed from the PC startup.
3) When the tree view is printed some nodes may overlap on the
printout and an extra blank page may be printed. This issue
is more likely to occur on large codeplug configurations.
4) On some printers, the columns in some printed tables might be
slightly wider than they should be, causing the table to spread
horizontally onto a second page.
5) Emergency Revert Personalities assigned on the Signaling Configuration Page
will not be tracked if the personality being referenced is moved in the tree
view.
6) On certain HP Laserjet printers the Print Summary option will only print
one page. If you experience this problem, it is recommended that you first
save the information to a file and then use any Editor (Word, Wordpad, etc..)
to open the file and print the summary information.
7) When in Windows ME and Windows XP, sometimes an extra set of scroll bars get
displayed when viewing certain screens.
Programming Hints:
------------------
1) It should be noted that a new/added conventional personality
must be assigned to a zone/channel position. To add a zone to
a radio click the "+" in a Personality Assignment to Zone
Window. To add a conventional personality to the radio, click
the "+" on a Conventional Personality Window. To add an
additional conventional personality to a zone go to the
Personality Assignment to Zone:Channel window for the
desired zone. Click the right mouse key within the channel
table to add a conventional personality entry. Please read
the CPS help for additional information.
2) Speed Dial buttons should not be programmed to the P1, P2, and
P3 buttons on radios, which overlay these buttons with the menu
navigation keys. The speed dial buttons will not operate
in this configuration because the buttons function as the menu
navigation keys when phone mode is entered.
3) When adding a new conventional personality, verify that the
bandwidth selected on the Conventional Personality Basic screen is
correct. Incorrect selections will lead to poor radio
performance.
====================================================================
Radio Profesional - Software de Programación para Clientes R06.10.02
====================================================================
Actualizaciones en esta publicación.
-----------------------------------
- Se añade la habilidad de activar la caracteristica que previene que el Canal Prioritario 1 se modifique a travéz del menú del radio.
- Se añade soporte bandas de 700 MHz para portátiles y móviles; y bloquea banda de resguardo.
Reparación de fallas importantes:
--------------------------------
-N/A
Requerimientos del Sistema:
--------------------------
Sistemas Operativos: Windows 95, Windows 98, Windows NT 4.0,
Windows ME, Windows 2000 Professional,
Windows XP (Home y Office)
Requerimientos de Hardware:
Procesador Pentium II 333 o superior
Memoria 64 MB RAM recomendado
Espacio en Disco Rígido mínimo 16 MB de Espacio Libre
Periféricos Mouse o Trackball soportado por Microsoft Windows
Puerto Serial para radiocomunicaciones soportado por Microsoft Windows
Puerto de Impresora para impresión de informes soportado por Microsoft Windows
Unidad de Disquetes de 3 1/2 pulgadas de 1,44 MB
CD-ROM para instalación de software
Problemas conocidos de CPS:
--------------------------
1) Si su PC corre la primera versión de Microsoft Windows 95
y no ha instalado Internet Explorer, podrá experimentar
problemas en la instalación y ejecución de CPS debido a que ciertos
componentes del sistema operativo son obsoletos.
Para eliminar este problema, se han incluidos dos parches (patches) de Microsoft
en CPS CD. Si experimenta problemas con Windows 95, por favor vaya al CD y ejecute:
/Win95Patches/40comupd.exe
/Win95Patches/dcom95.exe
y luego reinstale CPS.
2) En algunas PC, el CPS puede terminar en forma anormal si intenta hacer Print Preview
(vista preliminar de impresión) desde la pantalla Print Custom (impresión customizada).
Este problema sólo ocurre cuando se selecciona Print All (imprimir todos). Este problema
ha sido observado en las computadoras Compaq Windows 98 con los siguientes programas:
* Easy Access Internet Program (cpqEasyAcc.exe)
* Compaq Internet Watchdog Program (watchdog.exe)
Si debe utilizar la función CPS, se recomienda retirar estos
programas del inicio de la PC.
3) Cuando se imprime la vista árbol algunos nodos pueden superponerse en
la copia impresa y se podrá imprimir una hoja en blanco adicional. Es más probable
que este problema ocurra con grandes configuraciones de codeplug.
4) En algunas impresoras, las columnas en algunas tablas impresas podrían
ser apenas más anchas de lo habitual, haciendo que la tabla se expanda
en forma horizontal hacia la segunda página.
5) Las Emergency Revert Personalities (personalidades de reversión en caso de emergencia)
asignadas en la Signaling Configuration Page (página de configuración de señalización)
no serán rastreadas si la personalidad a la cual hace referencia ha sido desplazada de la vista
árbol.
6) En ciertas impresoras HP Laserjet la opción Print Summary (imprimir resumen) sólo imprimirá
una página. Si experimenta este problema, se recomienda que primero
guarde la información en un archivo y luego utilice un editor (Word, Wordpad, etc.).
para abrir el archivo e imprimir la información de resumen.
7) Con Windows ME y Windows XP, a veces se representa un conjunto extra de barras de desplazamiento
cuando se visualizan ciertas pantallas.
Sugerencias de Programación:
---------------------------
1) Nótese que toda personalidad convencional nueva/agregada
deberá asignarse a una posición de zona/canal. Para agregar una zona a
un radio, haga clic en "+" en una ventana Personality Assignment to Zone
(asignación de personalidad a una zona). Para agregar una personalidad
convencional al radio, haga clic en "+" en una ventana Conventional Personality
(ventana de personalidad convencional). Para agregar una personalidad adicional a una zona,
ir a la ventana Personality Assignment to Zone: Channel (asignación de personalidad a
zona:canal) para la zona deseada. Haga clic en el botón derecho del mouse dentro
de la tabla del canal para agregar la entrada de una personalidad convencional. Por favor lea
la ayuda de CPS para mayor información.
2) Los botones de Speed Dial (discado rápido) no deberán programarse
en los botones P1, P2, y P3 en los radios que superponen estos botones con las teclas
de navegación del menú. Los botones de discado rápido no funcionarán
en esta configuración porque los botones funcionan como las teclas
de navegación del menú cuando se ingresa el modo teléfono.
3) Cuando se agrega una nueva personalidad convencional, verifique que el
ancho de banda seleccionado en la pantalla Conventional Personality Basic (personalidad
convencional básica) sea correcto. Las selecciones incorrectas llevarán a un mal
funcionamiento del radio.
=================================================================
Rádio Profissional - Software de Programação do Cliente R06.10.02
=================================================================
Melhorias nesta versão:
----------------------
- Acrescentado a capacidade que previne a edição do canal prioritário 1 através do menu do rádio.
- Acrescentado suporte para banda de 700 MHz do Portátil Waris HT1250LS+ e Móvel CDM1550LS+ para o novo 700 MHz. Um BLOCO de Guarda de Banda: 757-758 / 787-788 MHz.
Reparos de erros significativos:
-------------------------------
- N/A
Requisitos de Sistemas:
----------------------
Sistemas Operacionais: Windows 95, Windows 98, Window NT 4.0,
Windows ME, Windows 2000 Professional,
Windows XP (Home e Office)
Requisitos de Hardware:
Processador Pentium II 333 ou superior
Memória 64 MB RAM recomendada
Espaço em Disco Rígido Mínimo de 16 MB de espaço livre
Periféricos Mouse ou Trackball com suporte Microsoft Windows
Porta Serial com suporte Microsoft Windows para comunicação de rádio
Porta para Impressora com suporte Microsoft Windows para impressão de relatórios
Unidade de Disco Flexível de 1,44 MB 3 1/2 pol
CD-ROM para instalação de software
Problemas Conhecidos de CPS:
---------------------------
1) Se seu PC estiver executando a primeira versão de Microsoft Windows 95
e Internet Explorer não estiver instalado, você pode ter problemas na
instalação e execução do CPS pelo fato de que certos componentes
do sistema operacional estarem desatualizados.
Para eliminar este problema, duas correções (patches) Microsoft foram incluídas no CD
de CPS. Se tiver problemas com o Windows 95, vá para o CD e execute:
/Win95Patches/40comupd.exe
/Win95Patches/dcom95.exe
e depois reinstale o CPS.
2) Em alguns PCs, o CPS pode terminar anormalmente se Print Preview (ver impressão antecipada)
for buscado na tela Print Custom (customizar impressão). Esse problema somente
ocorre quanto Print All (imprimir tudo) é selecionado. Esse problema foi observado em computadores
Compaq Windows 98 com os seguintes programas em execução:
* Programa Easy Access Internet (cpqEasyAcc.exe)
* Programa Compaq Internet Watchdog (watchdog.exe)
Se essa função do CPS for usada, recomenda-se a remoção desses programas
da inicialização do PC.
3) Quando a imagem da árvore é impressa, alguns nós podem se sobrepor na
impressão e pode ser impressa uma página em branco extra. Esse problema
tem maior probabilidade de ocorrer em grandes configurações de codeplugs.
4) Em algumas impressoras, as colunas em algumas tabelas impressas podem ser
levemente mais largas do que deveriam, fazendo a tabela se estender horizontalmente
para uma segunda página.
5) A função Emergency Revert Personalities (reversão de personalidades de emergência) designada
na Signaling Configuration Page (página de configuração de sinalização) não será rastreada
se a personalidade em referência for movida na imagem da árvore.
6) Em algumas impressoras HP Laserjet, na opção Print Summary (resumo de impressão) apenas
uma página será impressa. Se enfrentar esse problema, recomenda-se primeiro salvar
as informações para um arquivo e depois usar qualquer programa de edição (Word, Wordpad, etc..)
para abrir o arquivo e imprimir as informações do resumo.
7) Quando em Windows ME e Windows XP, algumas vezes um jogo extra de barras de paginação
é exibido quando são mostradas determinadas telas.
Dicas de Programação:
--------------------
1) Deve-se observar que uma nova/adicional personalidade convencional
deve ser designada para uma posição de zona/canal. Para acrescentar uma zona
a um rádio clique no "+" em uma Personality Assignment (designação de personalidade)
para a Zone Window (janela de zona). Para acrescentar uma personalidade
convencional ao rádio, clique no "+" em uma Conventional Personality Window (janela de personalidade
convencional) . Para acrescentar uma personalidade convencional adicional a uma zona
vá para a Personality Assignment (designação de personalidade) para a janela Zone:Channel (zona:canal)
da zona desejada. Clique a tecla direita do mouse dentro da tabela de canal para acrescentar uma entrada
de personalidade convencional. Consulte a ajuda do CPS para informações adicionais.
2) Os botões de Discagem Rápida não devem ser programados nos botões P1, P2 e
P3 nos rádios, o que sobrepõe esses botões com as teclas de navegação do menu.
Os botões de discagem rápida não vão operar nesta configuração, pois os botões
funcionam como as teclas de navegação do menu quando o modo de telefone
é selecionado.
3) Ao acrescentar uma nova personalidade convencional, certifique-se de que a
largura de banda selecionada na tela Conventional Personality Basic (básica de personaliadade
convencional) seja a correta.
Seleções incorretas levarão ao mau desempenho do rádio.
Saturday, March 5, 2011
Professional Radio Series CPS R10.06.02
Professional Series Portable MPT Upgrade Kit R02.08.00
============================================================================
SOFTWARE RELEASE NOTE
============================================================================
Product : Professional GP640/GP680/GP1280/GP644/GP688 Series FlashGrade Tool
Release : R02.08.00
Date : 04-Oct-2010
Language : English
============================================================================
PURPOSE OF THE RELEASE
============================================================================
NEW FEATURE:
N/A
CURRENT KNOWN OPEN ISSUE:
N/A
FIXES THE FOLLOWING ISSUE:
N/A
SUPPORTED FEATURES:
- Reading Radio information
- Up-Version a radio to software version R02.08.00 and codeplug to latest
version from previous released versions. The tuning data is saved and
rewrite to radio during upgrading.
- GP640/GP680/GP1280/GP644/GP688 models supported in one tool.
SUPPORTED SOFTWARE VERSIONS:
- Only official radio software release version and bands.
In this version:
R01.02.00, R01.02.03, R01.02.07, R01.02.04, R01.02.05,
R01.02.06, R01.02.07, R01.03.00, R01.03.01, R01.03.03,
R01.03.04, R01.03.06, R01.03.07, R01.03.08, R01.03.09,
R01.03.10, R02.00.08, R02.00.13, R02.00.15, R02.00.16,
R02.00.17, R02.00.20, R02.00.22, R02.01.00, R02.01.07,
R02.01.11, R02.01.13, R02.01.14, R02.01.16, B02.01.19,
R02.02.00, R02.03.00, R02.04.00, R02.05.03, R02.05.05,
R02.06.04, B02.06.07, R02.07.04, R02.07.05, R02.08.00
- Supported model number:
Model Number Tanapa Latest Description
Number Version
---------------------------------------------------------------------------
H25EDC9CK3 PMUD1511A 08.00 pop 300 band
H25EDH9CK6 PMUD1512A 08.00 pref with KEYPAD 300 band
H25EDN9CK8 PMUD1513A 08.00 prime 300 band
H25KCH4CK6 PMUD1972A 08.00 pref with kp VHF band
H25KCH6CK6 PMUD2048A 08.00 pref with kp VHF band
H25KCH6CK6 PMUD2048B 08.00 Laz ATEX EPP pref VHF
H25KDC9CK3 PMUD1484A 08.00 pop VHF band
H25KDC9CK3 PMUD1484B 08.00 pop VHF band
H25KDC9CK3 PMUD1484C 08.00 pop VHF band
H25KDH9CK6 PMUD1485A 08.00 pref with kp VHF band
H25KDH9CK6 PMUD1485B 08.00 pref with KEYPAD VHF band
H25KDH9CK6 PMUD1485C 08.00 pref with KEYPAD VHF band
H25KDN9CK8 PMUD1486A 08.00 PRIME VHF band
H25KHC4CK6 PMUD1972B 08.00 Laz ATEX EPP pref VHF
H25PDC9CK3 PMUD1538A 08.00 pop 330 band
H25PDC9CK3 PMUD1538B 08.00 pop 330 band
H25PDH9CK6 PMUD1539A 08.00 pref with kp 330 band
H25PDH9CK6 PMUD1539B 08.00 pref with KEYPAD 330 band
H25PDN9CK8 PMUD1540A 08.00 prime 330 band
H25RCH4CK6 PMUE2216B 08.00 pref with kp UHF band
H25RCH4CK6 PMUE2216C 08.00 pref with kp UHF band
H25RCH4CK6 PMUE2216E 08.00 Laz ATEX EPP pref UHF1
H25RCH6CK6 PMUE2256B 08.00 pref with kp UHF band
H25RCH6CK6 PMUE2256C 08.00 pref with kp UHF band
H25RCH6CK6 PMUE2256E 08.00 Laz ATEX EPP pref UHF1
H25RDC9CK3 PMUE1436A 08.00 pop UHF band
H25RDC9CK3 PMUE1436B 08.00 pop UHF band
H25RDC9CK3 PMUE1436C 08.00 pop UHF band
H25RDC9CK3 PMUE1436D 08.00 Laz EPP Portable pop UHF band
H25RDH9CK6 PMUE1437A 08.00 pref with kp UHF band
H25RDH9CK6 PMUE1437B 08.00 pref with KEYPAD UHF band
H25RDH9CK6 PMUE1437C 08.00 pref with KEYPAD UHF band
H25RDH9CK6 PMUE1437D 08.00 Laz EPP Portable pref with Keypad UHF band
H25RDN9CK8 PMUE1439A 08.00 prime UHF band
H25SDC9CK3 PMUE1481A 08.00 pop UHF2 band
H25SDC9CK3 PMUE1481B 08.00 pop UHF2 band
H25SDC9CK3 PMUE1481C 08.00 pop UHF2 band
H25SDC9CK3 PMUE1481D 08.00 Laz EPP Portable pop UHF2 band
H25SDH9CK6 PMUE1482A 08.00 pref with kp UHF2 band
H25SDH9CK6 PMUE1482B 08.00 pref with KEYPAD UHF2 band
H25SDH9CK6 PMUE1482C 08.00 pref with KEYPAD UHF2 band
H25SDH9CK6 PMUE1482D 08.00 Laz EPP Portable pref with Keypad UHF2 band
H25SDN9CK8 PMUE1486A 08.00 prime UHF2 band
H38RDC9CK3 PMUE1961A 08.00 pop UHF band
H38RDC9CK3 PMUE1961B 08.00 pop UHF band
H38RDC9CK3 PMUE1961C 08.00 Min EPP Portable pop UHF band
H38RDC9CK3 PMUE2794A 08.00 pop UHF band
H38RDC9CK3 PMUE2794B 08.00 Min IP67 pop UHF1
H38RDF9CK5 PMUE2780A 08.00 pref without kp UHF band
H38RDF9CK5 PMUE2780B 08.00 Min IP67 pref LK UHF1
H38RDH9CK6 PMUE1962A 08.00 pref with kp UHF band
H38RDH9CK6 PMUE1962B 08.00 pref with kp UHF band
H38RDH9CK6 PMUE1962C 08.00 Min EPP Portable pref with Keypad UHF band
H38RDH9CK6 PMUE2795A 08.00 pref with kp UHF band
H38RDH9CK6 PMUE2795B 08.00 Min IP67 pref FK UHF1
H25NDC9CK3 PMUD2525A 08.00 No display 300
H25NDH9CK6 PMUD2526A 08.00 1 Line Display 300
=======================================================================================
WARNING
=======================================================================================
PLEASE READ: WARNING FOR ALL RADIO TYPES
PLEASE SAVE YOUR EXISTING CODEPLUG AS AN ARCHIVE FILE. The codeplug programming
information may be lost after the update process therefore, it is recommended to read
the radio using the CPS, and save an archive of the radio's codeplug before starting
the update process. After the update, this archive can now be used to recover the
codeplug programming information by programming the archive back into the radio.
Ensure the radio updating process is not interrupted. Interruption will cause the
radio not to operate anymore and attempting to update the radio again will NOT be
successful.
Do NOT create a shortcut of the program (e.g. on your desktop), the program might
not be able to find the data files in that case!
Do not remove the programming cable or turn off the radio while the update is in
progress.
In case of failure during the updating, a message box will appear to guide the user
to recover from the failure, if possible.
The flashing rate can be changed only by restarting the program.
You may not run more than one copy of the program at the same time.
Baud rate 115k can only be supported by certain Radio Interface Boxes (RIB).
Use 19k baud rate when using a RIB. RKN4075A RIBless cable supports 115k baud.
============================================================================
HOW TO INSTALL AND RUN THIS SOFTWARE
============================================================================
Installation of the software can be completed by double clicking the setup
file "UpgradeKit_MPT_Portable-R02.08.00.exe",and can be started through
Programs Menu.
Do NOT create a shortcut of the program e.g. on your desktop,the program
might not be able to find the data files in that case !
REQUIRED EQUIPMENT
For the usage of this software the following radio accessories are required:
- Flash adapter, P/N HLN9742A or B
and (i)
- Radio Interface Box, P/N RLN4008
with battery or power supply
- RIB to PC cable, P/N 3080369B72 (9pin) or 3080369B71 (25pin)
- Programming/test cable, P/N RKN4074 (GP3xx, GP6xx, GP12xx)
- Programming/test cable, P/N JMKN4123 (GP344, GP388)
or (ii)
- RIBless programming cable, P/N RKN4075 (GP3xx, GP6xx, GP12xx)
By using equipment (i) the Flash adapter has to be connected between the
Radio Interface Box and the Programming/test cable.Maximum baud rate for
this equipment is 19,200 Bd.
By using equipment (ii) the Flash adapter has to be connected between the
PC and the RIBless programming cable.
For Flash Adapter HLN9742A, "Flash mode on" means switch position "ON".
For Flash Adapter HLN9742B, "Flash mode on" means switch position "A",
position "B" is not used for portable flashing.
=======================================================================================
INSTRUCTIONS ABOUT UPGRADING PROCESS
=======================================================================================
The following instructions detail the operations of the Firmware Kit:
(Note: These instructions must be followed in the exact order to work properly):
1. Read through the README file and make sure your radio meets the updating
specifications. The README file can be found by going through Start Menu
>> Programs >> Professional Radio Upgrade Kit >> Upgrade Kit R02.08.00 with CP 08.00 for MPT Portable Radios
>> Readme
These instructions must be followed in the exact order for the radio
updating to work properly
2. Start the Firmware Kit by going to Start menu Programs >> Professional Radio Upgrade Kit
>> Upgrade Kit R02.08.00 with CP 08.00 for MPT Portable Radios >> Upgrade Kit R02.08.00 for Portable
3. Connect a fully charged battery or a power supply to a radio and turn the
radio on. Ensure that the radio has powered up properly.
4. Attach the programming cable to the radio. Connect the other end of the
programming cable to the computer or Radio Interface Box (RIB) through
the flashing adapter (HLN9742B). Ensure that the flashing adapter is set
to "OFF" position.
5. After the Firmware Kit is launched and only on the first attempt of updating,
the flash Baud rate configuration dialog box will appear. The default baud
rate is 19,200. Select 'OK' if you want to use the default value or you can
select a different baud rate and then click the 'OK' button.
6. Once the upgrade screen appears, click on the "PROGRAM" button and follow
the instructions.
7. You will now see a status bar indicating the checking of radio data.
8. Set the flash adapter to 'ON' position.
9. Remove the power from the radio and then reconnect the power.
#Note:
THE RADIOS DISPLAY WILL BE BLANK AND THE RADIO WILL APPEAR TO BE NONFUNCTIONAL
EVEN THOUGH THE "on/off" KNOB IS IN THE "ON" POSITION. THIS IS CORRECT!!! THE
RADIO IS ACTUALLY IN BOOTSTRAP MODE WHICH IS REQUIRED FOR FLASHING!
10. Click the "OK" button to continue with the updating process.
11. You will now see a status bar indicating the percentage of completion.
12. Once flashing is completed, remove the programming cable and set the flash
adapter to "OFF" position.
(This is very important, even if you are going to update another radio).
13. To update another radio, attach the programming cable, and go to step #3.
=======================================================================================
TROUBLESHOOTING
=======================================================================================
If Firmware Kit will not start
1. Make sure this is an original version of the kit and not copied off another
computer.
2. Make sure another copy is not running on your computer.
If an error is returned when you select program, check the following:
1. On RIB setting menu, set 'Echo' for single-wired bootstrap. 'No Echo' is for
dual-wired bootstrap. Professional radios use single-wired bootstrap.
2. On the Comm setting menu, make sure that the port selected is the one to
which the radio is connected.
3. Make sure the radio is on and properly connected to the computer.
If an error is returned immediately after the radio is in bootstrap:
1. Click 'OK' and switch the flash adapter to the 'CPS' or 'Normal' or 'OFF'
position, turn the radio off, then on again, and try again.
============================================================================
RADIO SOFTWARE RELEASE NOTE
============================================================================
Release mpt-R02.08.00
Previous Release mpt-R02.07.05A
Professional Series Mobile MPT Upgrade Kit R02.08.00
============================================================================
SOFTWARE RELEASE NOTE
============================================================================
Product : Professional GM640/GM660/GM1280 Series FlashGrade Tool
Release : R02.08.00
Date : 05 Oct 2010
Language : English
============================================================================
PURPOSE OF THIS RELEASE
============================================================================
NEW FEATURE:
N/A
Note:
The flashing performance has been reduced after new flashrom implementation,
especially for the baud rate of 19200.
SUPPORTED FEATURES:
- Reading Radio information
- Upgrade a radio to software version R02.08.00 and codeplug the latest
version from previous released versions. The tuning data is saved and
rewrite to radio during upgrading.
SUPPORTED SOFTWARE VERSIONS:
- Only official radio software release version and bands.
In this version:
R02.00.08, R02.00.13, R02.00.17, R02.00.18, R02.00.20,
R02.00.22, R02.01.00, R02.01.07, R02.01.11, R02.01.13,
R02.01.14, R02.01.16, B02.01.19, R02.02.00, R02.03.00,
R02.04.00, R02.05.03, R02.06.04, B02.06.07, R02.07.04,
R02.07.05, R02.08.00
Software is updated to version R02.08.00.
codeplug is updated from all previous versions to the latest
version (refer to the latest codeplug version information below).
- Supported model number:
Model Number Tanapa Latest Description
Number Version
----------------------------------------------------------------------------------------
M25RHC9CK1 IMUE6009A 08.00 GM640(MCX720): Mobile Pop UHF1
M25SHC9CK1 IMUE6010A 08.00 GM640(MCX720): Mobile Pop UHF2
M25KHC9CK1 IMUD6018A 08.00 GM640(MCX720): Mobile Pop VHF
M25RHF9CK5 IMUE6009A 08.00 GM660(MCX760): Mobile Pref UHF1
M25SHF9CK5 IMUE6010A 08.00 GM660(MCX760): Mobile Pref UHF2
M25KHF9CK5 IMUD6018A 08.00 GM660(MCX760): Mobile Pref VHF
M25RHN9CK8 IMUE6009A 08.00 GM1280(MCX780): Mobile Prime UHF1
M25SHN9CK8 IMUE6010A 08.00 GM1280(MCX780): Mobile Prime UHF2
M25KHN9CK8 IMUD6018A 08.00 GM1280(MCX780): Mobile Prime VHF
M25RHA9CK7 IMUE6009A 08.00 GM1280(MCX700): Mobile Data Box UHF1
M25SHA9CK7 IMUE6010A 08.00 GM1280(MCX700): Mobile Data Box UHF2
M25KHA9CK7 IMUD6018A 08.00 GM1280(MCX700): Mobile Data Box VHF
M25RHA9CK0 IMUE6009A 08.00 GM1280(MCX700): Mobile Data Box Asia UHF1
M25SHA9CK0 IMUE6010A 08.00 GM1280(MCX700): Mobile Data Box UHF2
M25KHA9CK0 IMUD6018A 08.00 GM1280(MCX700): Mobile Data Box Asia UHF2
==============
EPP Models
==============
M25RHC9CK1 IMUE6009B 08.00 GM640(MCX720): Mobile Pop UHF1 EPP
M25KHC9CK1 IMUD6018B 08.00 GM640(MCX720): Mobile Popu VHF EPP
M25RHF9CK5 IMUE6009B 08.00 GM660(MCX760): Mobile Pref UHF1 EPP
M25KHF9CK5 IMUD6018B 08.00 GM660(MCX760): Mobile Pref VHF EPP
M25RHN9CK8 IMUE6009B 08.00 GM1280(MCX780): Mobile Prime UHF1 EPP
M25KHN9CK8 IMUD6018B 08.00 GM1280(MCX780): Mobile Prime VHF EPP
M25RHA9CK7 IMUE6009B 08.00 GM1280(MCX700): Mobile Data Box UHF1 EPP
M25KHA9CK7 IMUD6018B 08.00 GM1280(MCX700): Mobile Data Box VHF EPP
M25RHA9CK0 IMUE6009B 08.00 GM1280(MCX700): Mobile Data Box Asia UHF1 EPP
M25KHA9CK0 IMUD6018B 08.00 GM1280(MCX700): Mobile Data Box Asia VHF EPP
=======================================================================================
WARNING
=======================================================================================
PLEASE READ: WARNING’S FOR ALL RADIO TYPES
PLEASE SAVE YOUR EXISTING CODEPLUG AS AN ARCHIVE FILE. The codeplug programming
information may be lost after the update process therefore, it is recommended to read
the radio using the CPS, and save an archive of the radio's codeplug before starting
the update process. After the update, this archive can now be used to recover the
codeplug programming information by programming the archive back into the radio.
Ensure the radio updating process is not interrupted. Interruption will cause the
radio not to operate anymore and attempting to update the radio again will NOT be
successful.
Do NOT create a shortcut of the program (e.g. on your desktop), the program might
not be able to find the data files in that case!
Do not remove the programming cable or turn off the radio while the update is in
progress.
In case of failure during the updating, a message box will appear to guide the user
to recover from the failure, if possible.
The flashing rate can be changed only by restarting the program.
You may not run more than one copy of the program at the same time.
Baud rate 115k can only be supported by certain Radio Interface Boxes (RIB).
Use 19k baud rate when using a RIB. RKN4075A RIBless cable supports 115k baud.
============================================================================================
HOW TO INSTALL AND RUN THE SOFTWARE
============================================================================================
Installation of the software can be completed by double clicking the setup
file "UpgradeKit_for_Mobile-R02.08.00.exe". This file will be in the
downloaded up-version kit.
REQUIRED EQUIPMENT
For the usage of this software the following radio accessories are required:
Connect all the items using one of the following sequences:
(i) Rib-less Configuration
------------------------
1. PC com port >> 9 to 25 pin converter >> Programming Cable (AARKN4081)
>> Flash Adapter (FKN8096A) >> microphone jack of the radio
2. PC USB Port >> USB cable >> USB Serial Adapter >> 9 to 25 pin converter >> Programming Cable (AARKN4081)
>> Flash Adapter (FKN8096A) >> microphone jack of the radio
Note: The Converter is not requiring if serial port is 25 pin.
(ii) For Rib Cable configuration
----------------------------------
1. PC com port >> PC to Rib cable P/N 3080369B72 (9pin) or 3080369B71 (25pin)
>> Radio Interface Box (RLN4008E) >> Flash Adapter (FKN8096A) >> Programming cable (AARKN4083A) >>
>> rear connector of the radio
2. PC USB Port >> USB cable >> USB Serial Adapter >> PC to Rib cable P/N 3080369B72 (9pin) or 3080369B71 (25pin)
>> Radio Interface Box (RLN4008E) >> Flash Adapter (FKN8096A) >> Programming cable (AARKN4083A) >>
>> rear connector of the radio
Note : Maximum baud rate for this equipment is 19,200 Bd.
Note: Ensure the Flash Adapter switch is in the 'CPS' position.
============================================================================================
INSTRUCTIONS ABOUT UPGRADING PROCESS
============================================================================================
These instructions must be followed in the exact order to work properly
1. Read through the Upgrade Kit instructions and make sure your radio meets updating
specifications. This file can be found through Start Menu >> Programs >>
Professional Radios Upgrade Kit>> Upgrade Kit R02.08.00 with CP 08.00 for Mobile Radios >> README
2. Power on the radio using a 12 vdc power supply or in an automobile. If the automobiles
ignition is on, turn off all other accessories to ensure the quietest possible environment.
Do not run the engine during this procedure.
3. Start the Upgrade Kit from the Start Menu >> Programs >> Professional Radios
Upgrade Kit>> Upgrade Kit R02.08.00 with CP 08.00 for Mobile Radios >> UpgradeKit for Mobile - R02.08.00
4. Once the Upgrade Kit screen appears, click on the 'PROGRAM' button.
5. After the tool is launched, check the the flash Baud rate from menu Options > Configuration.
The default baud rate is 19,200. Select 'OK' if you want to use the default value or you can
select a different baud rate and then click on the 'OK' button
6. A message box will appear with instructions to put the radio in the Bootstrap mode.
-Turn off the radio.
-Switch the flashing adapter into the 'Flash' mode.
-Turn the radio on and make sure the radio doesn't boot up like normal.
7. After clicking 'OK' updating should begin if the radio has been properly put in bootstrap mode.
A window will pop up initially saying "Please Wait" then the window will read "Progress" and
give you a percentage of completion. Instructions in the window will give indications to each
process of the update.
8. A window will pop up when the update is complete reading "Radio Update is successful"
9. Click 'OK' return the flashing switch to the 'CPS' position, and remove the programming & flashing
cable. Power off and on the radio to complete the process and to get the radio out of the bootstrap mode.
10. Connect another radio and repeat the process from Step 4.
============================================================================================
TROUBLESHOOTING
============================================================================================
If UpgradeKit will not start
1. Make sure this is an original version of the kit and not copied off another
computer
2. Make sure another copy is not running on your computer.
If an error is returned when you select program, check the following:
1. On RIB setting menu, set 'Echo' for single-wired bootstrap. 'No Echo' is for
dual-wired bootstrap. Professional radios use single-wired bootstrap.
2. On the Comm setting menu, make sure that the port selected is the one to
which the radio is connected.
If an error is returned immediately after the radio is in bootstrap, click Ok and
switch the flash adapter to 'CPS' mode, turn the radio off, on and try again.
============================================================================
RADIO SOFTWARE RELEASE NOTE
============================================================================
Release mpt_mobile-R02.08.00
Previous Release mpt_mobile-R02.07.05B
Professional Series Mobile 5T Upgrade Kit R03.15.00
==============================================
README FILE FOR 5T MOBILE UPGRADE KIT SOFTWARE
==============================================
Product : Professional GM300/GM340/GM339/GM360/GM380 series.
Release : R03.15.00
Date : 16 Dec 2010
Language : English
====================
Features For Release
====================
- Upgrade 5T Mobile Radio to software version R03.15.00 and to codeplug version R03.14.03.
- Compatible CPS version: R03.11.15
- Tuning data is saved and rewrite to radio during upgrade.
- Supported software versions (official):
R03.00.25, R03.00.26, R03.01.10, R03.01.17, R03.01.20, R03.01.22, R03.01.25, R03.01.27,
R03.01.31, R03.01.37, R03.02.00, R03.02.07, R03.02.09, R03.02.11, R03.02.13, R03.02.15,
R03.02.16, R03.02.17, R03.03.00, B03.03.02, B03.03.03, R03.04.00, R03.04.02, B03.04.03,
B03.04.05, R03.05.00, R03.06.00, R03.07.06, B03.08.04, R03.08.08, B03.08.10, B03.09.03,
R03.09.05, R03.10.03, R03.11.02, B03.12.00, R03.12.03, B03.12.04, R03.13.00, R03.14.00,
B03.15.00, R03.15.00
- Supported model number:
Model Number Tanapa Number Latest Version Description
------------------------------------------------------------------------------
EPP models
-------------------------------------------------------------------------------
M25CKF9AN5 IMUB6004C 08.00 GM360(GM339)pref lb2 epp
M25DKF9AN5 IMUB6005C 08.00 GM360(GM339)pref lb3 epp
M25KHA9AN0 IMUD6013B 08.00 GM300 databox vhf epp
M25KHC9AN1 IMUD6013B 08.00 GM340 plain vhf epp
M25KHF4AN5 IMUD6013B 08.00 GM360(GM339)pref vhf epp 12_5K
M25KHF9AN5 IMUD6013B 08.00 GM360(GM339)pref vhf epp
M25KHN9AN8 IMUD6024B 08.00 GM380(GM399)prime vhf epp
M25RHA9AN0 IMUE6015B 08.00 GM300 databox uhf epp
M25RHC9AN1 IMUE6015B 08.00 GM340 plain uhf epp
M25RHF4AN5 IMUE6015B 08.00 GM360(GM339)pref Uhf epp 12_5K
M25RHF9AN5 IMUE6015B 08.00 GM360(GM339)pref uhf epp
M25RHN9AN8 IMUE6038B 08.00 GM380(GM399)prime uhf epp
M25SHF4AN5 IMUE6016A 08.00 GM360(GM339)pref uhf2 12_5K
Non-EPP models
-------------------------------------------------------------------------------
M25BKF9AN5 IMUB6003A 08.00 GM360(GM339)pref lb1
M25CKF9AN5 IMUB6004A 08.00 GM360(GM339)pref lb2
M25DKF9AN5 IMUB6005A 08.00 GM360(GM339)pref lb3
M25KHA9AN0 IMUD6013A 08.00 GM300 databox vhf
M25KHC9AN1 IMUD6013A 08.00 GM340 plain vhf
M25KHF9AN5 IMUD6013A 08.00 GM360(GM339)pref vhf
M25KHN9AN8 IMUD6024A 08.00 GM380(GM399)prime vhf
M25RHA9AN0 IMUE6015A 08.00 GM300 databox uhf
M25RHC9AN1 IMUE6015A 08.00 GM340 plain uhf
M25RHF9AN5 IMUE6015A 08.00 GM360(GM339)pref uhf
M25RHN9AN8 IMUE6038A 08.00 GM380(GM399)prime uhf
M25SHF9AN5 IMUE6016A 08.00 GM360(GM339)pref uhf2
M25SHN9AN8 IMUE6042A 08.00 GM380(GM399)prime uhf2
===============================
WARNING FOR ALL RADIO TYPES !!!
===============================
1. PLEASE SAVE YOUR EXISTING CODEPLUG AS AN ARCHIVE FILE BEFORE UPGRADE:
The codeplug programming information may be lost after the upgrade process.
Therefore, it is recommended to read the radio using the CPS before upgrade,
and save an archive of the radio's codeplug before starting the upgrade process.
After upgrade, the archive file can be used to recover the codeplug programming
information by programming the archive back into the radio.
2. Ensure the upgrade process is not interrupted. Interruption will cause the
radio not to operate anymore and attempting to upgrade the radio again will NOT be
successful.
3. Do NOT create a shortcut of the program (e.g. on your desktop), the program might
not be able to find the data files in that case!
4. Do not remove the programming cable or turn off the radio while upgrade is in
progress.
5. In case of failure during upgrade, a message box will appear to guide the user
to recover from the failure, if possible.
6. The flashing rate can only be changed by restarting the program.
7. Do not run more than one copy of the program at the same time.
8. Baud rate 115k can only be supported by certain Radio Interface Boxes (RIB).
Use 19k baud rate when using a RIB. RKN4075A RIBless cable supports 115k baud.
======================================
HOW TO INSTALL AND RUN THIS SOFTWARE
======================================
Installation of the software can be completed by double clicking the setup
file "UpgradeKit_5T_Mobile-R03.15.00.exe",and can be started through
Programs Menu.
Do NOT create a shortcut of the program e.g. on your desktop, the program
might not be able to find the data files in that case !
For the usage of this software the following radio accessories are required:
(A) Flashing mobiles via the rear connector:
- Flash adapter, P/N HLN9742A or B
and (i)
- Radio Interface Box, P/N RLN4008
with battery or power supply
- RIB to PC cable, P/N 3080369B72 (9pin) or 3080369B71 (25pin)
- Programming/test cable, P/N RKN4083
or (ii)
- RIBless programming cable, P/N RKN4081
- 10 pin (Mic) to 20 pin (rear) adapter RLN4853
By using equipment (i) the Flash adapter has to be connected between the
Radio Interface Box and the Programming/test cable. Maximum baud rate for
this equipment is 19,200 Bd.
By using equipment (ii) the Flash adapter has to be connected between the
PC and the RIBless programming cable.
For Flash Adapter HLN9742A, "Flash mode on" means switch position "ON".
For Flash Adapter HLN9742B, "Flash mode on" means switch position "A",
position "B" is used for mic connector flashing.
It is not possible to use Programming cable GTF374 for upgrading radios.
or
(B) Flashing mobiles via the mic connector:
- RIBless programming cable, P/N RKN4081B
- Flash adapter, P/N HLN9742B
"Flash mode on" means flash adapter switch position "B",position "A" is
used for rear connector flashing.
RIBless programming cable, P/N RKN4081A cannot be used for mic Connector
flashing.
It is not possible to use Programming cable GTF374 for upgrading radios.
=======================================
INSTRUCTIONS ABOUT UPGRADING PROCESS
=======================================
The following instructions detail the operations of the Upgrade Kit,
these instructions must be followed in the exact order:
1.Read through the README file and make sure your radio meets the updating
specifications. The README file can be found by going through Start Menu >>
Programs >> Professional Radio Upgrade Kit >> Upgrade Kit R03.15.00 with CP R03.14.03 for 5T Mobile Radios
>> README
2.Start the Upgrade Kit by going to Start menu >> Programs >> Professional
Radio Upgrade Kit >> Upgrade Kit R03.15.00 with CP R03.14.03 for 5T Mobile Radios >>
Upgrade Kit R03.15.00 with CP R03.14.03.
3.Connect a fully charged battery or a power supply to a radio and turn the radio
on. Ensure that the radio has powered up properly.
4.Attach the programming cable to the radio. Connect the other end of the
programming cable to the computer or Radio Interface Box (RIB) through the
flashing adapter (HLN9742B). Ensure that the flashing adapter is set to "OFF"
position.
5.After the Upgrade Kit is launched and the upgrade screen appears, click on the
"PROGRAM" button and follow the instructions.
6.Only on the first attempt of upgrade, the flash baud rate configuration
dialog box will appear. The default baud rate is 19,200. Select 'OK' if
you want to use the default value or you can select a different baud rate
and then click the 'OK' button.
7.Follow the instructions prompted to set the flash adapter to 'ON' position.
8.Remove the power from the radio and then reconnect the power.
#Note:
THE RADIO'S DISPLAY WILL BE BLANK AND THE RADIO WILL APPEAR TO BE NOT FUNCTIONAL
EVEN THOUGH THE "ON/OFF" KNOB IS IN "ON" POSITION. THIS IS A CORRECT BEHAVIOR !!!
THE RADIO IS ACTUALLY IN BOOTSTRAP MODE WHICH IS REQUIRED FOR FLASHING!
9. Click the "OK" button to continue with the updating process.
10.The status bar will indicate the percentage of completion.
11.Once flashing is completed, remove the programming cable and set the flash adapter
to "OFF" position.
(This is very important, even if you are going to update another radio).
12.To update another radio, attach the programming cable, and go to step 3.
================
TROUBLESHOOTING
================
1. If the Upgrade Kit cannot be started:
A. Make sure it is the original version of the kit and not copied off another
computer.
B. Make sure another copy is not running on your computer.
2. If an error is returned when you select program, check the following:
A. On RIB setting menu, set 'Echo' for single-wired bootstrap. 'No Echo' is for
dual-wired bootstrap. Professional radios use single-wired bootstrap.
B. On the Comm setting menu, make sure the port selected is the one which the
radio is connected.
C. Make sure the radio is on and properly connected to the computer.
3. If an error is returned immediately after the radio go into bootstrap mode:
A. Click 'OK' and switch the flash adapter to 'CPS' or 'NORMAL' or 'OFF'
position, turn the radio off then on, and try again.
==============================
RADIO SOFTWARE RELEASE NOTE
==============================
Release 5t-Mobile -R03.15.00
Previous Release 5t-Mobile -R03.14.00
Commercial Series Radios Patch Tool for Codeplug Corruption
============================================================================
SOFTWARE RELEASE NOTE
============================================================================
Product : Commercial Series Radios Patch Tool for Codeplug Corruption
Release : Official Release
Date : 13-Feb-2008
Language : English
Supporting OS : Win95,Win98,Win2k,WinNT,WinXP
============================================================================
Purpose of this release
============================================================================
Supported features:
- To recover the Type I codeplug corruption
- The tuning data and the CPS programming data will be preserved
Supported Software versions:
- All radio software release version and bands.
- Supported model number:
Model Number Tanapa Number Description
---------------------------------------------------------------------------
CMH50JDC9AA2 PMUD1987A conv gup 16ch vhf1
CMH50JDC9AA2 PMUD1987B conv gup 16ch vhf1
CMH50JDC9AA2 PMUD1987C conv gup 16ch china 4m
CMH50JDC9AJ2 PMUD1986A conv gup 16ch vhf1
CMH50JDC9AJ2 PMUD1986B conv gup 16ch vhf1
CMH50JDC9AJ2 PMUD1986C conv gup 16ch china 4m
H50JDC9AA1AN PMUD1981A conv gup 4ch vhf1
H50JDC9AA1AN PMUD2107A conv gup 4ch vhf1
H50JDC9AA1AN PMUD1981B conv gup 4ch vhf1
H50JDC9AA1AN PMUD2107B conv gup 4ch vhf1
H50JDC9AA1AN PMUD1981C conv gup 4ch vhf1 4m
H50JDC9AA1AN PMUD2107C conv gup 4ch vhf1 4m
H50JDC9AA2AN PMUD1982A conv gup 16ch vhf1
H50JDC9AA2AN PMUD2108A conv gup 16ch vhf1
H50JDC9AA2AN PMUD1982B conv gup 16ch vhf1
H50JDC9AA2AN PMUD2108B conv gup 16ch vhf1
H50JDC9AA2AN PMUD1982C conv gup 16ch vhf1 4m
H50JDC9AA2AN PMUD2108C conv gup 16ch vhf1 4m
H50JDC9AJ2 PMUD2010A conv gup 16ch vhf1
H50JDC9AJ2 PMUD2010B conv gup 16ch vhf1
H50JDC9AJ2 PMUD2010C conv gup 16ch vhf1 4m
H50KCC9AA1AN PMUD1824A conv gup 2w 4ch vhf2
H50KCC9AA1AN PMUD1824B conv gup 2w 4ch vhf2
H50KCC9AA1AN PMUD1824C conv gup 4ch vhf2 4m
H50KCC9AA2AN PMUD1826A conv gup 2w 16ch vhf2
H50KCC9AA2AN PMUD1826B conv gup 2w 16ch vhf2
H50KCC9AA2AN PMUD1826C conv gup 16ch vhf2 4m
H50KDC9AA1AN PMUD1820A conv gup 4ch vhf2
H50KDC9AA1AN PMUD2111A conv gup 4ch vhf2
H50KDC9AA1AN PMUD1820B conv gup 4ch vhf2
H50KDC9AA1AN PMUD2111B conv gup 4ch vhf2
H50KDC9AA1AN PMUD1820C conv gup 4ch vhf2 4m
H50KDC9AA1AN PMUD2111C conv gup 4ch vhf2 4m
H50KDC9AA2AN PMUD1822A conv gup 16ch vhf2
H50KDC9AA2AN PMUD2112A conv gup 16ch vhf2
H50KDC9AA2AN PMUD1822B conv gup 16ch vhf2
H50KDC9AA2AN PMUD2112B conv gup 16ch vhf2
H50KDC9AA2AN PMUD1822C conv gup 16ch vhf2 4m
H50KDC9AA2AN PMUD2112C conv gup 16ch vhf2 4m
H50KDC9AJ2AN PMUD1911A conv gup 16ch vhf2
H50KDC9AJ2AN PMUD1912A conv gup 16ch vhf2
H50KDC9AJ2AN PMUD1911B conv gup 16ch vhf2
H50KDC9AJ2AN PMUD1912B conv gup 16ch vhf2
H50KDC9AJ2AN PMUD1911C conv gup 16ch vhf2 4m
H50KDC9AJ2AN PMUD1912C conv gup 16ch vhf2 4m
H50QDC9AA1AN PMUE1984A conv gup 4ch uhf1
H50QDC9AA1AN PMUE2420A conv gup 4ch uhf1
H50QDC9AA1AN PMUE1984B conv gup 4ch uhf1
H50QDC9AA1AN PMUE2420B conv gup 4ch uhf1
H50QDC9AA1AN PMUE1984C conv gup 403-440m uhf1 4m
H50QDC9AA1AN PMUE2420C conv gup 4ch nd uhf1 4m
H50QDC9AA2AN PMUE1985A conv gup 16ch uhf1
H50QDC9AA2AN PMUE2421A conv gup 16ch uhf1
H50QDC9AA2AN PMUE1985B conv gup 16ch uhf1
H50QDC9AA2AN PMUE2421B conv gup 16ch uhf1
H50QDC9AA2AN PMUE1985C conv gup 16c uhf1 4m
H50QDC9AA2AN PMUE2421C conv gup 16ch uhf1 4m
H50QDC9AJ2AN PMUE2105A conv gup 16ch uhf1
H50QDC9AJ2AN PMUE2106A conv gup 16ch uhf1
H50QDC9AJ2AN PMUE2105B conv gup 16ch uhf1
H50QDC9AJ2AN PMUE2106B conv gup 16ch uhf1
H50QDC9AJ2AN PMUE2105C conv gup 16ch uhf1 4m
H50QDC9AJ2AN PMUE2106C conv gup 16ch uhf1 4m
H50RCC9AA1AN PMUE1953A conv gup 2w 4ch uhf2
H50RCC9AA1AN PMUE1953B conv gup 2w 4ch uhf2
H50RCC9AA1AN PMUE1953C conv gup 4ch uhf2 4m
H50RCC9AA2AN PMUE1955A conv gup 2w 16ch uhf2
H50RCC9AA2AN PMUE1955B conv gup 2w 16ch uhf2
H50RCC9AA2AN PMUE1955C conv gup 16ch uhf2 4m
H50RDC9AA1AN PMUE1949A conv gup 4ch uhf2
H50RDC9AA1AN PMUE2424A conv gup 4ch uhf2
H50RDC9AA1AN PMUE1949B conv gup 4ch uhf2
H50RDC9AA1AN PMUE2424B conv gup 4ch uhf2
H50RDC9AA1AN PMUE1949C conv gup 4ch uhf2 4m
H50RDC9AA1AN PMUE2424C conv gup 4ch uhf2 4m
H50RDC9AA2AN PMUE1951A conv gup 16ch uhf2
H50RDC9AA2AN PMUE2425A conv gup 16ch uhf2
H50RDC9AA2AN PMUE1951B conv gup 16ch uhf2
H50RDC9AA2AN PMUE2425B conv gup 16ch uhf2
H50RDC9AA2AN PMUE1951C conv gup 16ch uhf2 4m
H50RDC9AA2AN PMUE2425C conv gup 16ch uhf2 4m
H50RDC9AJ2AN PMUE2093A conv gup 16ch uhf2
H50RDC9AJ2AN PMUE2107A conv gup 16ch uhf2
H50RDC9AJ2AN PMUE2093B conv gup 16ch uhf2
H50RDC9AJ2AN PMUE2107B conv gup 16ch uhf2
H50RDC9AJ2AN PMUE2093C conv gup 16ch uhf2 4m
H50RDC9AJ2AN PMUE2107C conv gup 16ch uhf2 4m
H50SDC9AA1AN PMUE1986A conv gup 4ch uhf3
H50SDC9AA1AN PMUE2428A conv gup 4ch uhf3
H50SDC9AA1AN PMUE1986B conv gup 4ch uhf3
H50SDC9AA1AN PMUE2428B conv gup 4ch uhf3
H50SDC9AA1AN PMUE1986C conv gup 4ch uhf3 4m
H50SDC9AA1AN PMUE2428C conv gup 4ch uhf3 4m
H50SDC9AA2AN PMUE1987A conv gup 16ch uhf3
H50SDC9AA2AN PMUE2429A conv gup 16ch uhf3
H50SDC9AA2AN PMUE1987B conv gup 16ch uhf3
H50SDC9AA2AN PMUE2429B conv gup 16ch uhf3
H50SDC9AA2AN PMUE1987C conv gup 16ch uhf3 4m
H50SDC9AA2AN PMUE2429C conv gup 16ch uhf3 4m
H50SDC9AJ2AN PMUE2108A conv gup 16ch uhf3
H50SDC9AJ2AN PMUE2108B conv gup 16ch uhf3
H50SDC9AJ2AN PMUE2108C conv gup 16ch uhf4 4m
H50TDC9AA1AN PMUE2231A conv gup 4ch uhf4
H50TDC9AA1AN PMUE2231B conv gup 4ch uhf4
H50TDC9AA1AN PMUE2231C conv gup 4ch uhf4 4m
H50TDC9AA2AN PMUE2232A conv gup 16ch uhf4
H50TDC9AA2AN PMUE2232B conv gup 16ch uhf4
H50TDC9AA2AN PMUE2232C conv gup 16ch uhf4 4m
H50TDC9AJ22 PMUE2299A conv gup 16ch uhf4
H50TDC9AJ22 PMUE2299B conv gup 16ch uhf4
H50TDC9AJ22 PMUE2299C conv gup 16ch uhf4 4m
H65JDC9AA2AN PMUD1983A conv pir 16ch vhf1
H65JDC9AA2AN PMUD2109A conv pir 16ch vhf1
H65JDC9AA2AN PMUD2051A LS pir 16ch vhf1
H65JDC9AA2AN PMUD1983B conv pir 16ch vhf1
H65JDC9AA2AN PMUD2109B conv pir 16ch vhf1
H65JDC9AA2AN PMUD2051B LS pir 16ch vhf1
H65JDC9AA2AN PMUD1983C conv pir 16ch vhf1 4m
H65JDC9AA2AN PMUD2109C conv pir 16ch vhf1 4m
H65JDC9AA2AN PMUD2051C LS pir 16ch vhf1 4m
H65JDC9AJ2 PMUD2011A conv pir 16ch vhf1
H65JDC9AJ2 PMUD2011B conv pir 16ch vhf1
H65JDC9AJ2 PMUD2011C conv pir 16ch vhf1 4m
H65JDF9AA3AN PMUD1984A conv pir 32ch vhf1
H65JDF9AA3AN PMUD2115A conv pir 32ch vhf1
H65JDF9AA3AN PMUD2052A LS pir 32ch vhf1
H65JDF9AA3AN PMUD1984B conv pir 32ch vhf1
H65JDF9AA3AN PMUD2115B conv pir 32ch vhf1
H65JDF9AA3AN PMUD2052B LS pir 32ch vhf1
H65JDF9AA3AN PMUD1984C conv pir 32ch vhf1 4m
H65JDF9AA3AN PMUD2115C conv pir 32ch vhf1 4m
H65JDF9AA3AN PMUD2052C LS pir 32ch vhf1 4m
H65JDF9AJ3 PMUD2012A conv pir 32ch vhf1
H65JDF9AJ3 PMUD2012B conv pir 32ch vhf1
H65JDF9AJ3 PMUD2012C conv pir 32ch vhf1 4m
H65JDH9AA4AN PMUD1985A conv pir 64ch vhf1
H65JDH9AA4AN PMUD2110A conv pir 64ch vhf1
H65JDH9AA4AN PMUD2053A LS pir 64ch vhf1
H65JDH9AA4AN PMUD1985B conv pir 64ch vhf1
H65JDH9AA4AN PMUD2110B conv pir 64ch vhf1
H65JDH9AA4AN PMUD2053B LS pir 64ch vhf1
H65JDH9AA4AN PMUD1985C conv pir 64ch vhf1 4m
H65JDH9AA4AN PMUD2110C conv pir 64ch vhf1 4m
H65JDH9AA4AN PMUD2053C LS pir 64ch vhf1 4m
H65JDH9AJ4 PMUD2013A conv pir 64ch vhf1
H65JDH9AJ4 PMUD2013B conv pir 64ch vhf1
H65JDH9AJ4 PMUD2013C conv pir 64ch vhf1 4m
H65KDC9AA2AN PMUD1857A conv pir 16ch vhf2
H65KDC9AA2AN PMUD2113A conv pir 16ch vhf2
H65KDC9AA2AN PMUD2054A LS pir 16ch vhf2
H65KDC9AA2AN PMUD1857B conv pir 16ch vhf2
H65KDC9AA2AN PMUD2113B conv pir 16ch vhf2
H65KDC9AA2AN PMUD2054B LS pir 16ch vhf2
H65KDC9AA2AN PMUD1857C conv pir 16ch vhf2 4m
H65KDC9AA2AN PMUD2113C conv pir 16ch vhf2 4m
H65KDC9AA2AN PMUD2054C LS pir 16ch vhf2 4m
H65KDC9AJ2AN PMUD1913A conv pir 16ch vhf2
H65KDC9AJ2AN PMUD1914A conv pir 16ch vhf2
H65KDC9AJ2AN PMUD1913B conv pir 16ch vhf2
H65KDC9AJ2AN PMUD1914B conv pir 16ch vhf2
H65KDC9AJ2AN PMUD1913C conv pir 16ch vhf2 4m
H65KDC9AJ2AN PMUD1914C conv pir 16ch vhf2 4m
H65KDF9AA3AN PMUD1858A conv pir 32ch vhf2
H65KDF9AA3AN PMUD2116A conv pir 32ch vhf2
H65KDF9AA3AN PMUD2055A LS pir 32ch vhf2
H65KDF9AA3AN PMUD1858B conv pir 32ch vhf2
H65KDF9AA3AN PMUD2116B conv pir 32ch vhf2
H65KDF9AA3AN PMUD2055B LS pir 32ch vhf2
H65KDF9AA3AN PMUD1858C conv pir 32ch vhf2 4m
H65KDF9AA3AN PMUD2116C conv pir 32ch vhf2 4m
H65KDF9AA3AN PMUD2055C LS pir 32ch vhf2 4m
H65KDF9AJ3AN PMUD1915A conv pir 32ch vhf2
H65KDF9AJ3AN PMUD1915B conv pir 32ch vhf2
H65KDF9AJ3AN PMUD1915C conv pir 32ch vhf2 4m
H65KDH9AA4AN PMUD1859A conv pir 64ch vhf2
H65KDH9AA4AN PMUD2114A conv pir 64ch vhf2
H65KDH9AA4AN PMUD2056A LS pir 64ch vhf2
H65KDH9AA4AN PMUD1859B conv pir 64ch vhf2
H65KDH9AA4AN PMUD2114B conv pir 64ch vhf2
H65KDH9AA4AN PMUD2056B LS pir 64ch vhf2
H65KDH9AA4AN PMUD1859C conv pir 64ch vhf2 4m
H65KDH9AA4AN PMUD2114C conv pir 64ch vhf2 4m
H65KDH9AA4AN PMUD2056C LS pir 64ch vhf2 4m
H65KDH9AJ4AN PMUD1916A conv pir 64ch vhf2
H65KDH9AJ4AN PMUD1916B conv pir 64ch vhf2
H65KDH9AJ4AN PMUD1916C conv pir 64ch vhf2 4m
H65QDC9AA2AN PMUE1972A conv pir 16ch uhf1
H65QDC9AA2AN PMUE2422A conv pir 16ch uhf1
H65QDC9AA2AN PMUE2361A LS pir 16ch uhf1
H65QDC9AA2AN PMUE1972B conv pir 16ch uhf1
H65QDC9AA2AN PMUE2422B conv pir 16ch uhf1
H65QDC9AA2AN PMUE2361B LS pir 16ch uhf1
H65QDC9AA2AN PMUE1972C conv pir 16ch uhf1 4m
H65QDC9AA2AN PMUE2422C conv pir 16ch uhf1 4m
H65QDC9AA2AN PMUE2361C LS pir 16ch uhf1 4m
H65QDC9AJ2AN PMUE2094A conv pir 16ch uhf1
H65QDC9AJ2AN PMUE2096A conv pir 16ch uhf1
H65QDC9AJ2AN PMUE2094B conv pir 16ch uhf1
H65QDC9AJ2AN PMUE2096B conv pir 16ch uhf1
H65QDC9AJ2AN PMUE2094C conv pir 16ch uhf1 4m
H65QDC9AJ2AN PMUE2096C conv pir 16ch uhf1 4m
H65QDF9AA3AN PMUE1973A conv pir 32ch uhf1
H65QDF9AA3AN PMUE2362A LS pir 32ch uhf1
H65QDF9AA3AN PMUE1973B conv pir 32ch uhf1
H65QDF9AA3AN PMUE2554A conv sel pir 32ch uhf1
H65QDF9AA3AN PMUE2362B LS pir 32ch uhf1
H65QDF9AA3AN PMUE1973C conv pir 32ch uhf1 4m
H65QDF9AA3AN PMUE2554B conv pir 32ch uhf1 4m
H65QDF9AA3AN PMUE2362C LS pir 32ch uhf1 4m
H65QDF9AJ3AN PMUE2097A conv pir 32ch uhf1
H65QDF9AJ3AN PMUE2097B conv pir 32ch uhf1
H65QDF9AJ3AN PMUE2097C conv pir 32ch uhf1 4m
H65QDF9AJ5AN PMUE2524A conv sel pir 99ch uhf1
H65QDF9AJ5AN PMUE2524B conv pir 99ch uhf1 4m
H65QDH9AA4AN PMUE1974A conv pir 64ch uhf1
H65QDH9AA4AN PMUE2423A conv pir 64ch uhf1
H65QDH9AA4AN PMUE2363A LS pir 64ch uhf1
H65QDH9AA4AN PMUE1974B conv pir 64ch uhf1
H65QDH9AA4AN PMUE2423B conv pir 64ch uhf1
H65QDH9AA4AN PMUE2363B LS pir 64ch uhf1
H65QDH9AA4AN PMUE1974C conv pir 64ch uhf1 4m
H65QDH9AA4AN PMUE2423C conv pir 64ch uhf1 4m
H65QDH9AA4AN PMUE2363C LS pir 64ch uhf1 4m
H65QDH9AJ4AN PMUE2098A conv pir 64ch uhf1
H65QDH9AJ4AN PMUE2098B conv pir 64ch uhf1
H65QDH9AJ4AN PMUE2098C conv pir 64ch uhf1 4m
H65RDC9AA2AN PMUE1966A conv pir 16ch uhf2
H65RDC9AA2AN PMUE2426A conv pir 16ch uhf2
H65RDC9AA2AN PMUE2364A LS pir 16ch uhf2
H65RDC9AA2AN PMUE1966B conv pir 16ch uhf2
H65RDC9AA2AN PMUE2426B conv pir 16ch uhf2
H65RDC9AA2AN PMUE2364B LS pir 16ch uhf2
H65RDC9AA2AN PMUE1966C conv pir 16ch uhf2 4m
H65RDC9AA2AN PMUE2426C conv pir 16ch uhf2 4m
H65RDC9AA2AN PMUE2364C LS pir 16ch uhf2 4m
H65RDC9AJ2AN PMUE2095A conv pir 16ch uhf2
H65RDC9AJ2AN PMUE2099A conv pir 16ch uhf2
H65RDC9AJ2AN PMUE2095B conv pir 16ch uhf2
H65RDC9AJ2AN PMUE2099B conv pir 16ch uhf2
H65RDC9AJ2AN PMUE2095C conv pir 16ch uhf2 4m
H65RDC9AJ2AN PMUE2099C conv pir 16ch uhf2 4m
H65RDF9AA3AN PMUE1967A conv pir 32ch uhf2
H65RDF9AA3AN PMUE2365A LS pir 32ch uhf2
H65RDF9AA3AN PMUE2522A conv sel pir 32ch uhf2
H65RDF9AA3AN PMUE1967B conv pir 32ch uhf2
H65RDF9AA3AN PMUE2365B LS pir 32ch uhf2
H65RDF9AA3AN PMUE2522B conv sel pir 32ch uhf2
H65RDF9AA3AN PMUE1967C LS pir 32ch uhf2 4m
H65RDF9AA3AN PMUE2522C conv pir 32ch uhf2 4m
H65RDF9AA3AN PMUE2365C LS pir 32ch uhf2 4m
H65RDF9AJ3AN PMUE2100A conv pir 32ch uhf2
H65RDF9AJ3AN PMUE2100B conv pir 32ch uhf2
H65RDF9AJ3AN PMUE2100C conv pir 32ch uhf2 4m
H65RDH9AA4AN PMUE1968A conv pir 64ch uhf2
H65RDH9AA4AN PMUE2427A conv pir 64ch uhf2
H65RDH9AA4AN PMUE2366A LS pir 64ch uhf2
H65RDH9AA4AN PMUE1968B conv pir 64ch uhf2
H65RDH9AA4AN PMUE2427B conv pir 64ch uhf2
H65RDH9AA4AN PMUE2366B LS pir 64ch uhf2
H65RDH9AA4AN PMUE1968C conv pir 64ch uhf2 4m
H65RDH9AA4AN PMUE2427C conv pir 64ch uhf2 4m
H65RDH9AA4AN PMUE2366C LS pir 64ch uhf2 4m
H65RDH9AJ4AN PMUE2101A conv pir 64ch uhf2
H65RDH9AJ4AN PMUE2101B conv pir 64ch uhf2
H65RDH9AJ4AN PMUE2101C conv pir 64ch uhf2 4m
H65SDC9AA2AN PMUE1978A conv pir 16ch uhf3
H65SDC9AA2AN PMUE2430A conv pir 16ch uhf3
H65SDC9AA2AN PMUE2367A LS pir 16ch uhf3
H65SDC9AA2AN PMUE1978B conv pir 16ch uhf3
H65SDC9AA2AN PMUE2430B conv pir 16ch uhf3
H65SDC9AA2AN PMUE2367B LS pir 16ch uhf3
H65SDC9AA2AN PMUE1978C conv pir 16ch uhf3 4m
H65SDC9AA2AN PMUE2430C conv pir 16ch uhf3 4m
H65SDC9AA2AN PMUE2367C LS pir 16ch uhf3 4m
H65SDC9AJ2AN PMUE2102A conv pir 16ch uhf3
H65SDC9AJ2AN PMUE2102B conv pir 16ch uhf3
H65SDC9AJ2AN PMUE2102C conv pir 16ch uhf3 4m
H65SDF9AA3AN PMUE1979A conv pir 32ch uhf3
H65SDF9AA3AN PMUE2434A conv pir 32ch uhf3
H65SDF9AA3AN PMUE2368A LS pir 32ch uhf3
H65SDF9AA3AN PMUE1979B conv pir 32ch uhf3
H65SDF9AA3AN PMUE2434B conv pir 32ch uhf3
H65SDF9AA3AN PMUE2368B LS pir 32ch uhf3
H65SDF9AA3AN PMUE1979C conv pir 32ch uhf3 4m
H65SDF9AA3AN PMUE2434C conv pir 32ch uhf3 4m
H65SDF9AA3AN PMUE2368C lkp pir 32ch uhf3 4m
H65SDF9AJ3AN PMUE2103A conv pir 32ch uhf3
H65SDF9AJ3AN PMUE2103B conv pir 32ch uhf3
H65SDF9AJ3AN PMUE2103C conv pir 32ch uhf3 4m
H65SDH9AA4AN PMUE1980A conv pir 64ch uhf3
H65SDH9AA4AN PMUE2431A conv pir 64ch uhf3
H65SDH9AA4AN PMUE2369A LS pir 64ch uhf3
H65SDH9AA4AN PMUE1980B conv pir 64ch uhf3
H65SDH9AA4AN PMUE2431B conv pir 64ch uhf3
H65SDH9AA4AN PMUE2369B LS pir 64ch uhf3
H65SDH9AA4AN PMUE1980C conv pir 64ch uhf3 4m
H65SDH9AA4AN PMUE2431C conv pir 64ch uhf3 4m
H65SDH9AA4AN PMUE2369C LS pir 64ch uhf3 4m
H65SDH9AJ4AN PMUE2104A conv pir 64ch uhf3
H65SDH9AJ4AN PMUE2104B conv pir 64ch uhf3
H65SDH9AJ4AN PMUE2104C conv pir 64ch uhf3 4m
H65TDC9AA2AN PMUE2233A conv pir 16ch uhf4
H65TDC9AA2AN PMUE2432A conv pir 16ch uhf4
H65TDC9AA2AN PMUE2233B conv pir 16ch uhf4
H65TDC9AA2AN PMUE2432B conv pir 16ch uhf4
H65TDC9AA2AN PMUE2233C conv pir 16ch uhf4 4m
H65TDC9AA2AN PMUE2432C conv pir 16ch uhf4 4m
H65TDF9AA3AN PMUE2234A conv pir 32ch uhf4
H65TDF9AA3AN PMUE2234B conv pir 32ch uhf4
H65TDF9AA3AN PMUE2234C conv pir 32ch uhf4 4m
H65TDH9AA4AN PMUE2235A conv pir 64ch uhf4
H65TDH9AA4AN PMUE2433A conv pir 64ch uhf4
H65TDH9AA4AN PMUE2235B conv pir 64ch uhf4
H65TDH9AA4AN PMUE2433B conv pir 64ch uhf4
H65TDH9AA4AN PMUE2235C conv pir 64ch uhf4 4m
H65TDH9AA4AN PMUE2433C conv pir 64ch uhf4 4m
H65TDH9AJ4 PMUE2328A conv pir 64ch uhf4
H65TDH9AJ4 PMUE2328B conv pir 64ch uhf4
H65TDH9AJ4 PMUE2328C conv pir 64ch uhf4 apac 4m
IMPORTANT NOTICE: PLEASE READ BEFORE UPDATE
--------------------------------------------
1. This Patch tool should ONLY be operated by those who understands the agreement of the ELP first 21 bytes corrupted.
2. This Patch Tool is used to recover the first 21 bytes for ELP Conv products.
3. This tool IS NOT intended to be used as a Firmware Upversion kit.
4. The permission to access the compass link to download this tool is controlled.
============================================================================
WARNING
============================================================================
PLEASE READ: WARNING’S FOR ALL RADIO TYPES
PLEASE SAVE YOUR EXISTING CODEPLUG AS AN ARCHIVE FILE. The codeplug programming information may be lost after the update process therefore, it is recommended to read the radio using the CPS, and save an archive of the radio's codeplug before starting the update process. After the update, this archive can now be used to recover the codeplug programming information by programming the archive back into the radio.
Ensure the radio updating process is not interrupted. Interruption will cause the radio not to operate anymore
and attempting to update the radio again will NOT be successful.
Do NOT create a shortcut of the program (e.g. on your desktop), the program might not be able to find the data
files in that case!
Do not remove the programming cable or turn off the radio while the update is in progress.
In case of failure during the updating, a message box will appear to guide the user to recover from the failure, if possible.
The flashing rate can be changed only by restarting the program.
You may not run more than one copy of the program at the same time.
============================================================================
How to install and run this software
============================================================================
Installation of the software can be completed by double clicking the setup
file "Commercial Series Radios Patch Tool for Codeplug Corruption.exe", and can be
started through Programs Menu.
REQUIRED EQUIPMENT
For the usage of this software the following radio accessories are required:
Connect all the items in the following sequence for a Rib Configuration:
PC com port >>Rib to PC cable (3080369B72), RIB (RLN4008E) >> flash adapter (RLN5583A)
>> Radio. Ensure the switch on the programming & flashing cable box is in the "Normal" position.
Do NOT create a shortcut of the program e.g. on your desktop,
the program might not be able to find the data files in
that case !
============================================================================
INSTRUCTIONS ABOUT UPGRADING PROCESS
============================================================================
The following instructions detail the operations of the Firmware Kit:
(Note: These instructions must be followed in the exact order to work properly):
1. Start the Firmware Kit by going to Start->Motorola-> COommercial Series Radios Patch Tool-> Commercial Radios Patch Tool for Codeplug Recovery.exe
2. Connect a fully charged battery or a power supply to the radio and turn the
radio on. Ensure that the radio has powered up properly.
3. Once the Firmware Kit screen appears, click on the "PROGRAM" button.
4. A window will pop up initially saying "Please Wait" then the window will read "Progress" and give you a
percentage of completion. Information in the window will give indications to each process of the update.
5. A window will pop up when the updating is complete reading "Radio Update is successful."
6. Click "OK"and remove the programming & flashing cable. Power off and on the radio to complete the process .
7. Connect another radio and repeat the process from step 4. Remember, the baud rate selection is only
configured the first time after starting up the program.
============================================================================
TROUBLESHOOTING
============================================================================
If tool is not started:
1. Make sure this is an original version of the kit and not copied off another
computer
2. Make sure another copy is not running on your computer.
If an error is returned when you select program, check the following:
1. On the Comm setting menu, make sure that the port selected is the one to
which the radio is connected.
2. Make sure the radio is on and properly connected to the computer.
3. Make sure the RLN5583A adapter is in the OFF position.
If an error is returned immediately after the radio is put in bootstrap and Ok
is clicked put the adapter in the OFF position, put the radio off, on and try
again.
Adjusting Transmit Buffer:
1. Press Start button.
2. Select Setting and click on Control Panel.
3. Double click on System.
4. Select the Device Manager tab and double click on the Communication Port (COM1).
5. Select the Port Settings tab and click on the Advanced button.
6. Adjust the Transmit Buffer to one step lower than the highest.
============================================================================
WARNING
============================================================================
Ensure radio flashing is not interrupted. Interruption will cause the radio
not to operate anymore. Trying to flash the radio again will not work.
==============================================================
RADIO SOFTWARE RELEASE NOTE
=======================================================================================
Release ELP_Portable- NA
Previous Release ELP_Portable- NA
